(08-19) - LOADER CONTROL - JOYSTICK WITH SINGLE LEVER

Запчасти Case 721D (08-19) - LOADER CONTROL - JOYSTICK WITH SINGLE LEVER (08) - HYDRAULICS

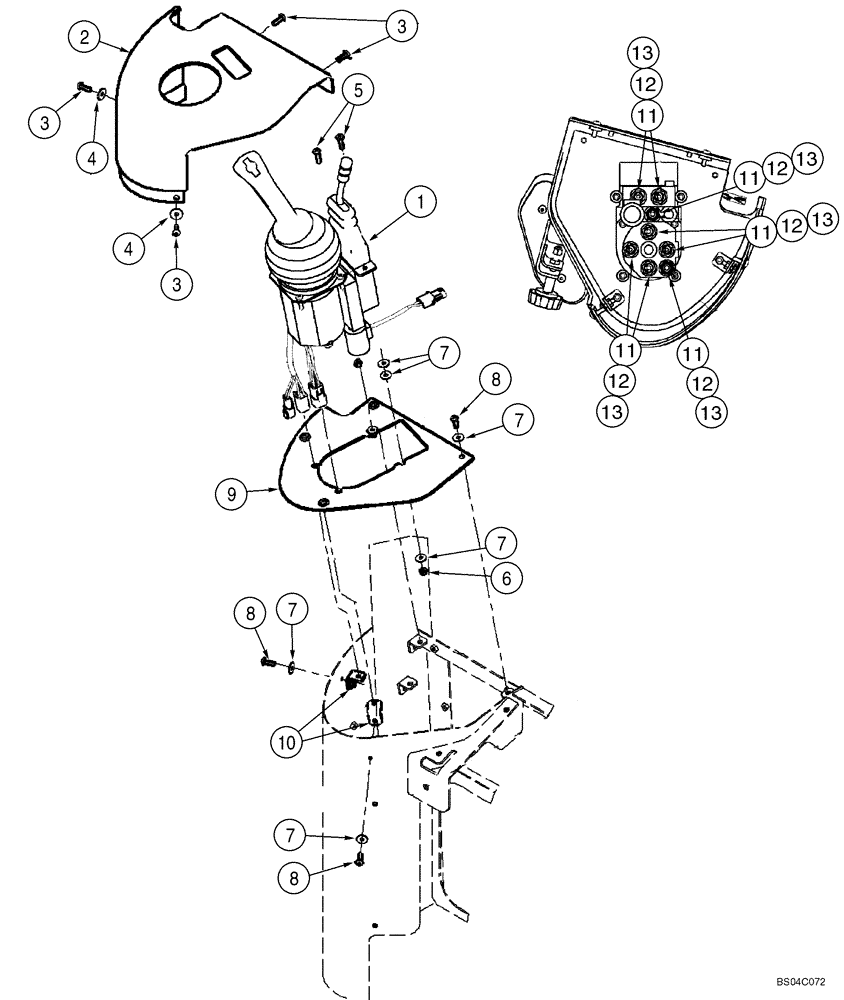

Схема запчастей Case 721D - (08-19) - LOADER CONTROL - JOYSTICK WITH SINGLE LEVER (08) - HYDRAULICS
12
5
11
13
11
6
7
7
3
11
3
7
12
12
7
9
4
2
8
7
13
8
13
13
12
11
12
11
10
3
8
1
4
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

414392A1

JOYSTICK

Joystick with Single Lever; Replaced by 87430913 Control Valve; Incl. Figures 08-18-18B, 19A; Incl. 2 -13

1шт.

1

87430913

JOYSTICK

Joystick with Single Lever; Replaces 414392A1 Control Valve; Incl. Figures 08-18-18B, 19A; Incl. 2 -13

1шт.

2

400402A1

COVER

1шт.

3

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

4шт.

4

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

2шт.

5

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

6шт.

6

832-10406

NUT,M6 x 1, Cl 8

6шт.

7

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

14шт.

8

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

6шт.

9

400977A2

PLATE

1шт.

10

400843A2

BRACKET

2шт.

11

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 14, 15

8шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

13

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
