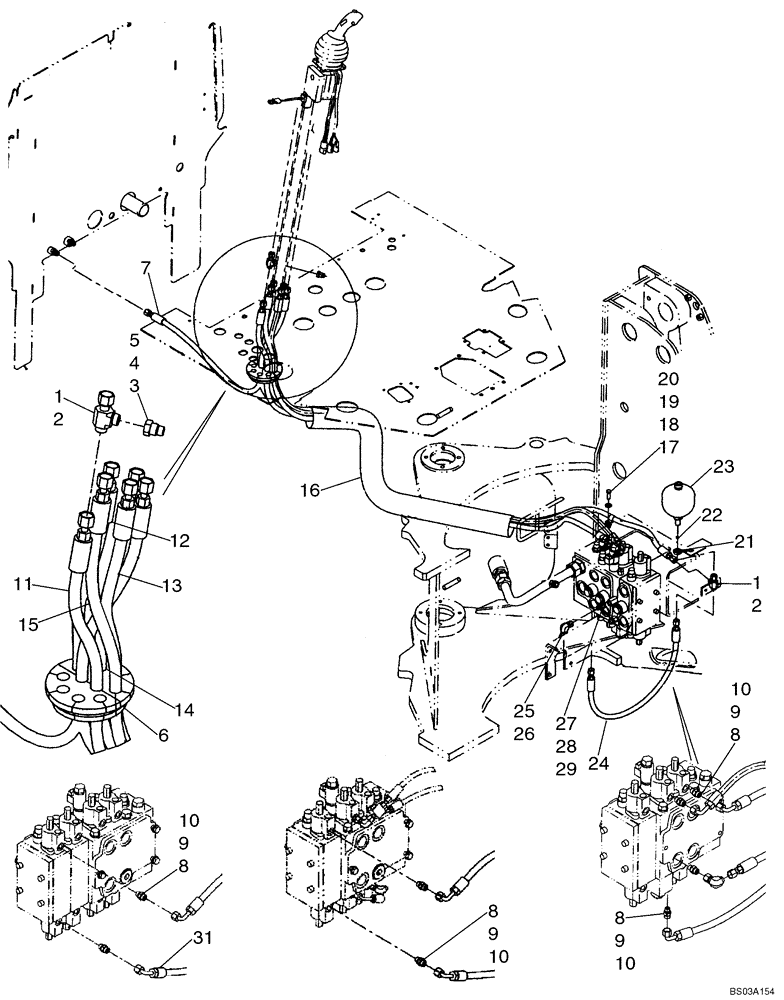

Запчасти Case 721D (08-18) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS

REF

INSTRUCTION

HOSE GROMMET TO TWO SPOOL VALVE

1шт.

1

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 2

2шт.

2

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

3

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

Incl. 4, 5

1шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

6

232388A1

GROMMET

2шт.

7

8500405

FLEXIBLE HOSE

1346 mm (53 in); Hydraulic Tank

1шт.

8

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 9, 10

8шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

10

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

8500404

FLEXIBLE HOSE

2696 mm (106-1/8 in); Pressure

1шт.

12

8501260

FLEXIBLE HOSE

2551 mm (100-7/16 in; Pilot Raise

1шт.

13

8604858

FLEXIBLE HOSE

2641 mm; Pilot Lower

1шт.

14

8501262

FLEXIBLE HOSE

2409 mm (94-7/8 in); Pilot Rollback

1шт.

15

8501263

FLEXIBLE HOSE

2470 mm (97-1/4 in); Pilot Dump

1шт.

16

8501271

HOSE PROTECTION,80.00 mm ID x 1500.00 mm

1шт.

17

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

1шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

19

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

20

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

21

701-909

NUT,11/16" - 16

M10

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

7/8 ID x 1/16; Face Seal

1шт.

23

8501047

ACCUMULATOR

Pilot; Component Parts Not Serviced Separately

1шт.

24

8500411

FLEXIBLE HOSE

785 mm (30-7/8 in); Pilot Accumulator

1шт.

25

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 26

2шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

27

391859A1

VALVE, CHECK

Incl. 28, 29

1шт.

28

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

29

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

REF

INSTRUCTION

HOSE GROMMET TO THREE SPOOL VALVE

1шт.

30

8501264

FLEXIBLE HOSE,9.53mm ID x 2660mm L, SAE 100R1

2741 mm (107-7/8 in)

2шт.

REF

INSTRUCTION

HOSE GROMMET TO FOUR SPOOL VALVE

1шт.

31

8501265

FLEXIBLE HOSE

2811 mm (110-11/16 in); Z-Bar Model

2шт.
