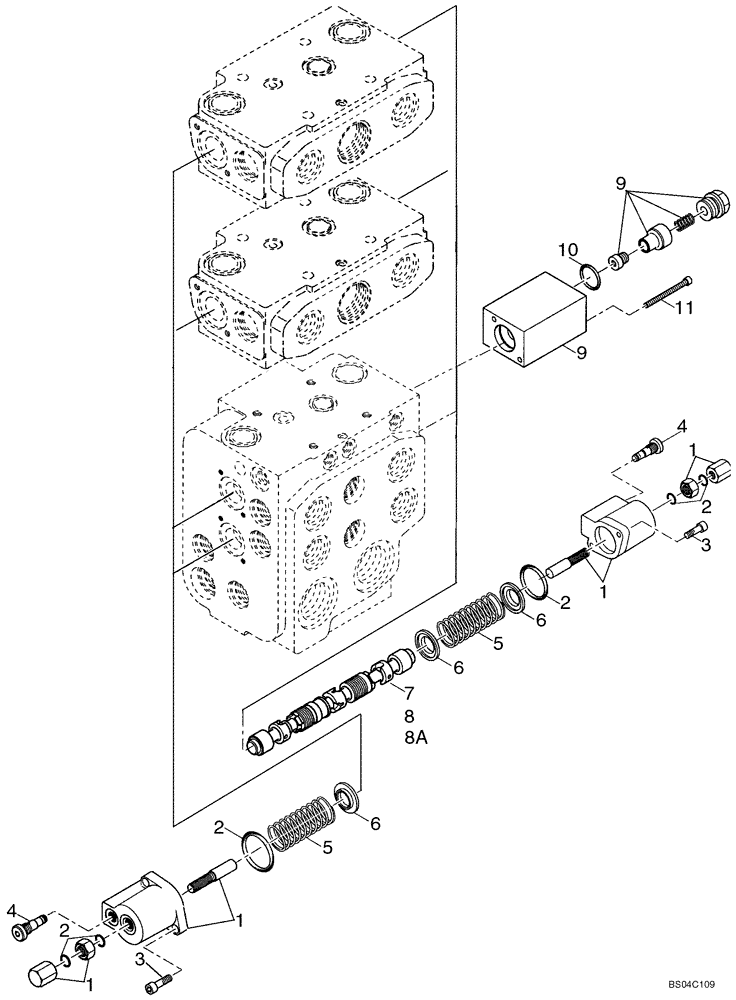

Запчасти Case 721D (08-17H) - VALVE SECTION - BUCKET/BOOM/OPTIONAL SPOOLS (4 SPOOL VALVE) (XT) - IF USED (08) - HYDRAULICS

87539267

HYDRAULIC VALVE

Four Spool; Incl. 1 - 11; Also Includes Parts On Figure 08-17G; XT Loader Models; If Used

1шт.

1

8602890

COVER

Component Parts Not Serviced Separately

7шт.

2

8604934

SEAL KIT

Load Sensing Control Block; Includes (29) O-Rings, Which Are Not Serviced Separately

1шт.

3

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

14шт.

4

8602924

CARTRIDGE

M12 x 1.5

5шт.

5

8602917

SPRING

8шт.

6

8602918

RETAINER

Spring

9шт.

7

87311763

SPOOL

Replaces 8602894

2шт.

8

8602895

SPOOL

1шт.

8a

87311900

SPOOL

1шт.

9

87311762

COVER

For 4 Spool End Cap; Replaces 8602891

1шт.

10

8604972

O-RING

1шт.

11

8602892

HEX SOC SCREW,M6 x 105mm

Hex Socket; M6 x 105

2шт.
