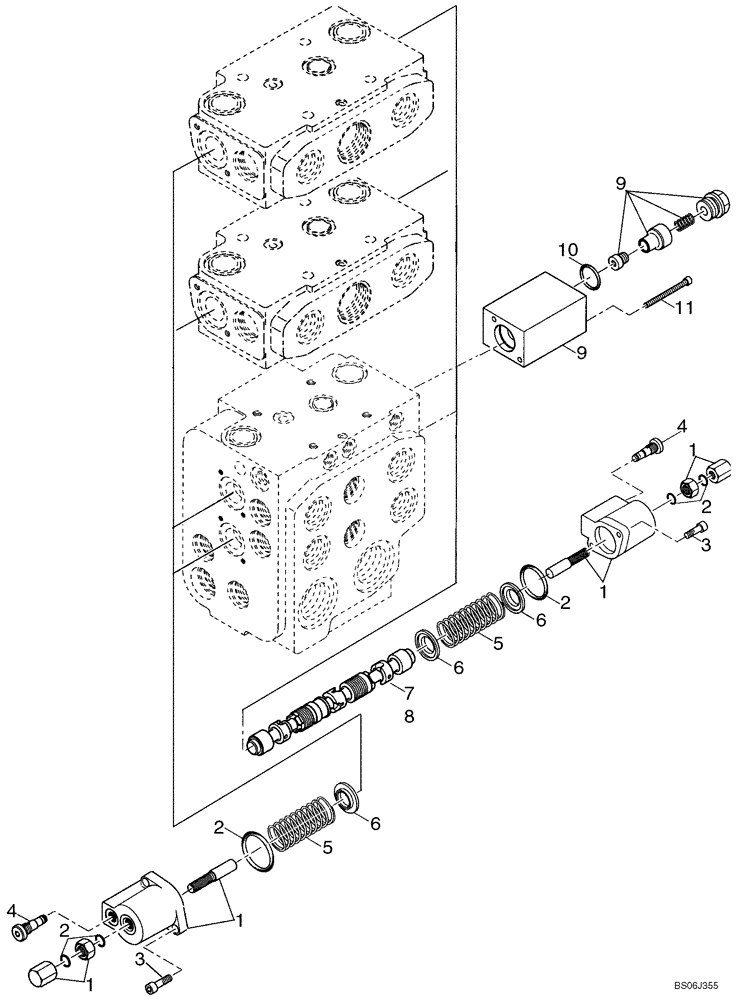

Запчасти Case 721D (08-17B) - VALVE SECTION - BUCKET/BOOM/OPTIONAL SPOOLS (4 SPOOL VALVE) (Z-BAR) - IF USED (08) - HYDRAULICS

87440135

HYDRAULIC VALVE

Incl. 1 - 11; Also Includes Housing Assembly On Figure 08-17A; Replaces 8500495 Valve

1шт.

1

8602890

COVER

Component Parts Not Serviced Separately

7шт.

2

8604934

SEAL KIT

Load Sensing Control Block; Includes (29) O-Rings, Which Are Not Serviced Separately

1шт.

3

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

14шт.

4

8602924

CARTRIDGE

M12 x 1.5

7шт.

5

8602917

SPRING

8шт.

6

8602918

RETAINER

Spring

9шт.

7

8602894

SPOOL

Bucket

3шт.

8

8602895

SPOOL

Boom; Used with Ref 9

1шт.

9

87311762

COVER

For 4 Spool End Cap

1шт.

10

8604972

O-RING

1шт.

11

8602892

HEX SOC SCREW,M6 x 105mm

Hex Socket; M6 x 105

2шт.
