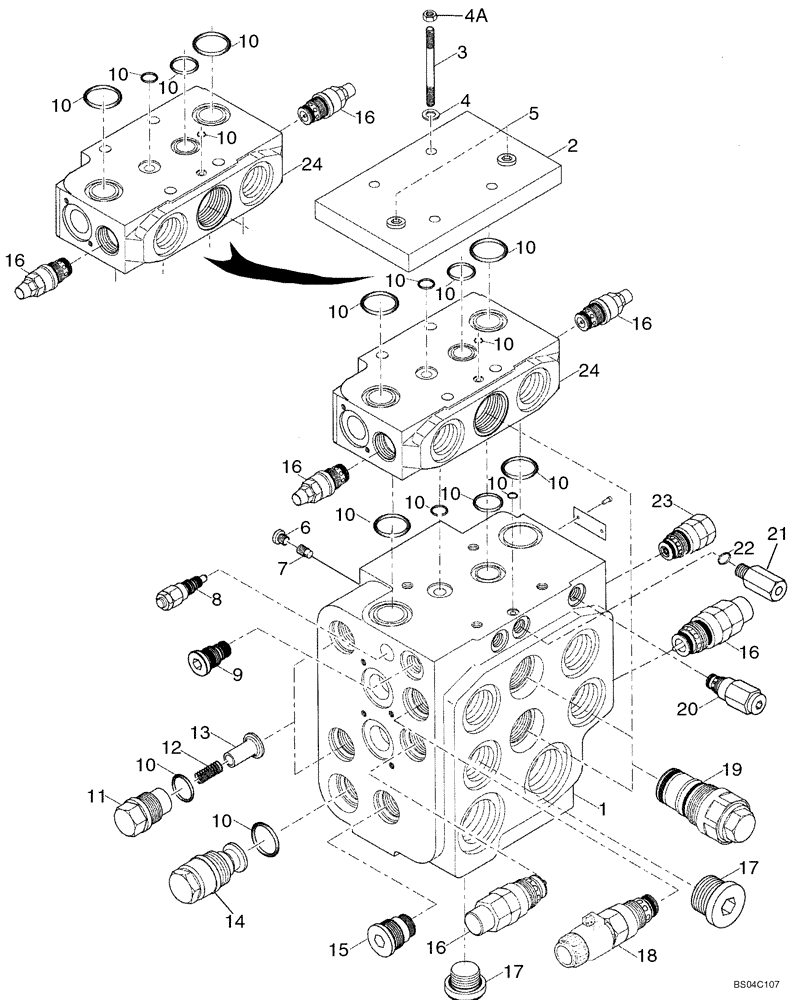

Запчасти Case 721D (08-17A) - VALVE ASSY - LOADER CONTROL, FOUR SPOOL (Z-BAR LOADER) - IF USED (08) - HYDRAULICS

87440135

HYDRAULIC VALVE

Incl. 1 - 25; Also Includes Spool Assemblies On Figure 08-17B; Z-Bar; Replaces 8500495 Valve; If Used

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

8602896

COVER

1шт.

3

8602932

STUD

M10 x 195; 10.9

4шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10.5 x 18 x 1.6mm

4шт.

4a

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

5

8602898

LOCK SCREW

M14 x 1.5

2шт.

6

8602923

SCREW,Lock, M18 x 1.5

M18 x 1.5; Locking

1шт.

7

8602922

CONE

No Longer Used

1шт.

8

8602925

VALVE PRESSURE RELIE

Includes (3) O-Rings, (4) Thrust Rings and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604941 Seal Kit, Ref 8A; Incl. 8A; Used In 87440135 Z-Bar and XR Loader Valve Only

1шт.

8a

8604941

SEAL KIT

Not Illustrated; 8602925 Pressure Relief Valve

1шт.

9

8602915

HYDRAULIC VALVE

Flow Limiting; Includes (2) O-Rings, (2) Thrust Rings and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604942 Seal Kit, Ref 9A; Incl. 9A

1шт.

9a

8604942

SEAL KIT

Not Illustrated

1шт.

10

8604934

SEAL KIT

Load Sensing Control Block; Includes (29) O-Rings, Which Are Not Serviced Separately

1шт.

11

8602919

SCREW,Lock, M28 x 1 x 49mm

Locking; M28 x 1 x 49

2шт.

12

8602921

SPRING

Compression

2шт.

13

8602920

CONE

2шт.

14

8602912

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

15

8602902

LOCK SCREW

Includes (2) O-Rings, (1) Thrust Ring and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604937 Seal Kit, Ref 15A; Incl. 15A

1шт.

15a

8604937

SEAL KIT

Not Illustrated

1шт.

16

8602906

HYDRAULIC VALVE

Combined Relief and Anti-Cavitation; Includes Spool Seal, (3) O-Rings, (2) Thrust Rings, Nut And Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604939 Seal Kit, Ref 16A; Incl. 16A

6шт.

16a

8604939

SEAL KIT

Not Illustrated

1шт.

17

8602893

SCREW,M33 x 2mm

M33 x 2; Locking

2шт.

18

8602908

HYDRAULIC VALVE

Anti-Cavitation, Electric Piloted; Includes 8602909 Coil, 8602910 Nut; Also Includes (1) Spool Seal, (3) O-Rings and Seal Kit; Seals Are Not Serviced Separately; For Service Of External Seals, Order 8604936 Seal Kit, Ref 18A; Incl. 18A; Used With 87440135

1шт.

8602909

COIL

1шт.

8602910

NUT

1шт.

18a

8604936

SEAL KIT

Not Illustrated

1шт.

19

8602900

PILOT VALVE

Anti-Cavitation; Includes (4) O-Rings, (4) Thrust Rings And Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604935 Seal Kit, Ref 19A; Incl. 19A

4шт.

19a

8604935

SEAL KIT

Not Illustrated

1шт.

20

8602913

HYDRAULIC VALVE

Flow Limiting; Includes (1) Seal, (3) O-Rings, (3) Thrust Rings and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604940 Seal Kit, Ref 20A; Incl. 20A

1шт.

20a

8604940

SEAL KIT

Not Illustrated

1шт.

21

8602899

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

22

8604973

O-RING

15.60 x 1.78

1шт.

23

8602904

PILOT VALVE

Anti-Cavitation; Includes Spool Seal, (3) O-Rings, (1) Thrust Ring and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604938 Seal Kit, Ref 23A; Incl. 23A

1шт.

23a

8604938

SEAL KIT

Not Illustrated

1шт.

24

8602927

SEAL KIT

M6 Control Block

1шт.

25

NSS

NOT SOLD SEPARAT

Housing, M6, Spool

2шт.
