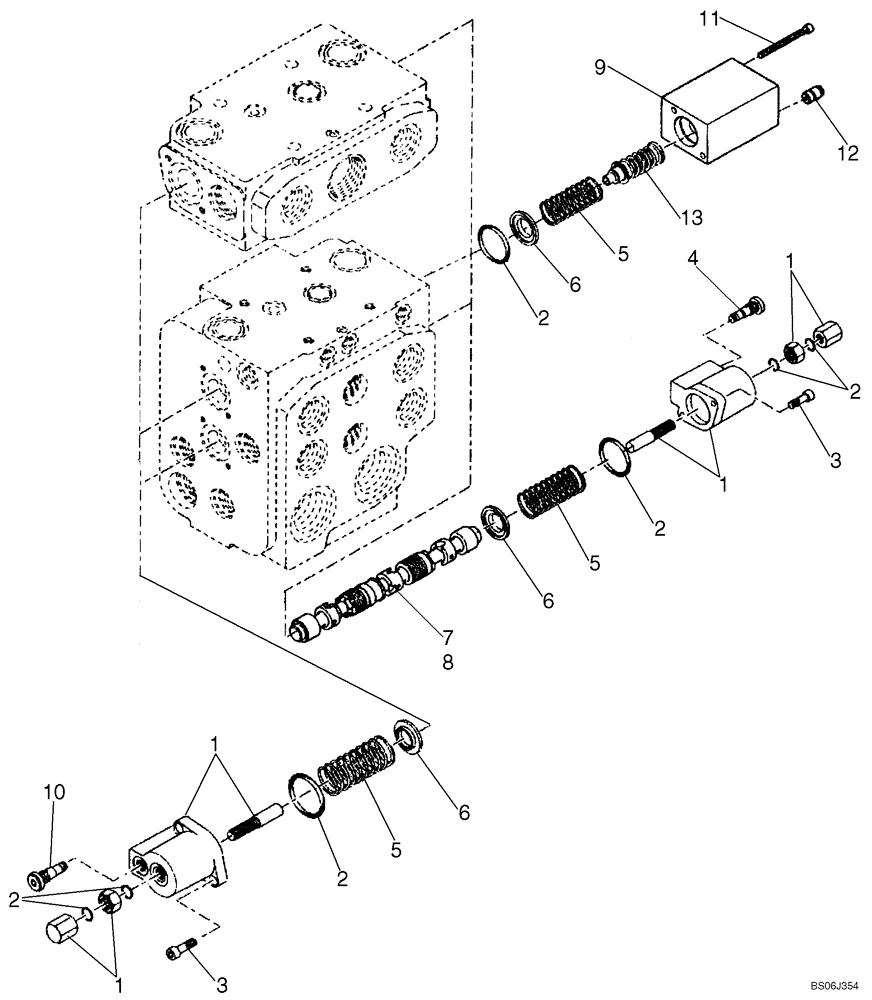

Запчасти Case 721D (08-16H) - VALVE SECTION - BUCKET/BOOM/OPTIONAL SPOOLS (3 SPOOL VALVE) (XT) - IF USED (08) - HYDRAULICS

87539266

HYDRAULIC VALVE

Replaces 87310590; Incl. 1-13; Includes Housing Assembly On Figure 08-16G

1шт.

1

8602890

COVER

Component Parts Not Serviced Separately

5шт.

2

8604934

SEAL KIT

Load Sensing Control Block; Includes (29) O-Rings, Which Are Not Serviced Separately

1шт.

3

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

10шт.

4

8602924

CARTRIDGE

M12 x 1.5

3шт.

5

8602917

SPRING

6шт.

6

8602918

RETAINER

Spring

6шт.

7

8602894

SPOOL

Piston

1шт.

8

8602895

SPOOL

Piston; Used with Ref 9

1шт.

8a

87311900

SPOOL

Not Illustrated

1шт.

9

87311762

COVER

Component Parts Not Serviced Separately

1шт.

10

87311766

PLUG

2шт.

11

8602892

HEX SOC SCREW,M6 x 105mm

Hex Socket

2шт.

12

8604578

CHECK VALVE

1шт.

13

87311768

SPRING

1шт.
