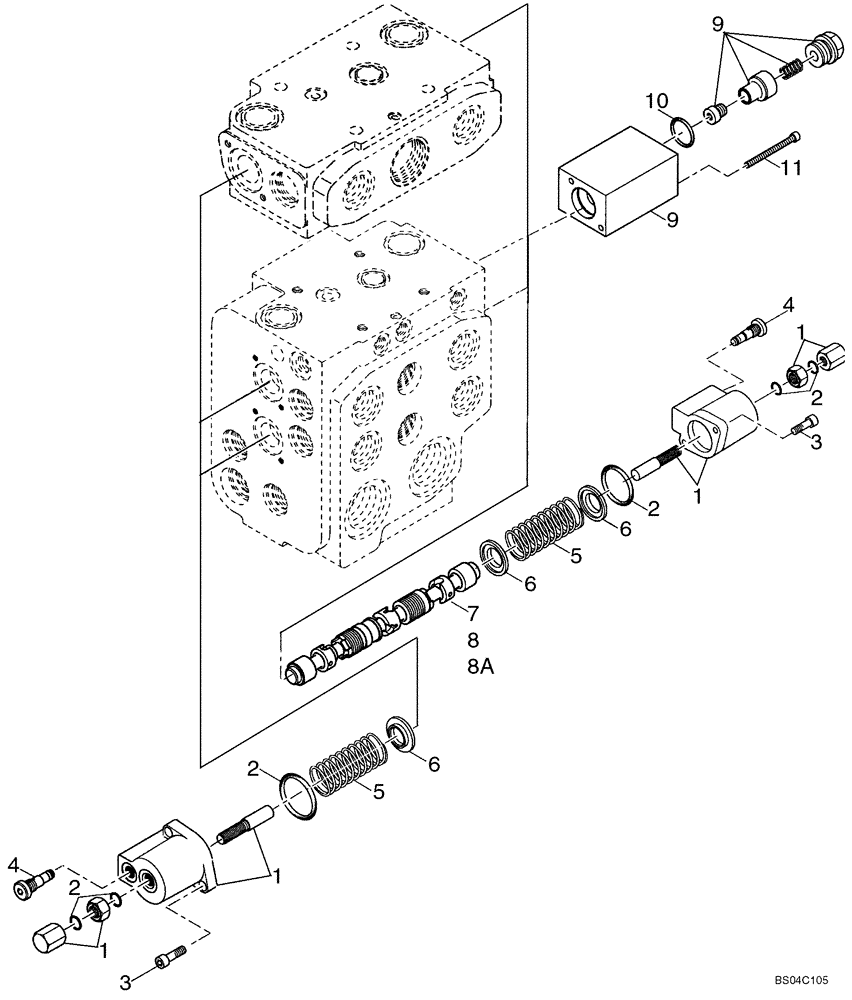

Запчасти Case 721D (08-16F) - VALVE SECTION - BUCKET/BOOM/OPTIONAL SPOOLS (3 SPOOL VALVE) (XT) - IF USED (08) - HYDRAULICS

87450854

HYDRAULIC VALVE

Incl. 1-24; Includes Spool Assembly On Figure 08-16F, Replaces 8500497; If Used

1шт.

1

8602890

COVER

Component Parts Not Serviced Separately

5шт.

2

8604934

SEAL KIT

Load Sensing Control Block; Includes (29) O-Rings, Which Are Not Serviced Separately

1шт.

3

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

10шт.

4

8602924

CARTRIDGE

M12 x 1.5

5шт.

5

8602917

SPRING

6шт.

6

8602918

RETAINER

Spring

7шт.

7

8602894

SPOOL

1шт.

8

8602895

SPOOL

Used with Ref 9

1шт.

8a

8602933

SPOOL

1шт.

9

8602891

COVER

Component Parts Not Serviced Separately

1шт.

10

8604972

O-RING

1шт.

11

8602892

HEX SOC SCREW,M6 x 105mm

Hex Socket

2шт.
