Запчасти Case 721D (08-16B) - VALVE SECTION - BUCKET/BOOM/OPTIONAL SPOOLS (3 SPOOL VALVE) (Z-BAR) - IF USED (08) - HYDRAULICS

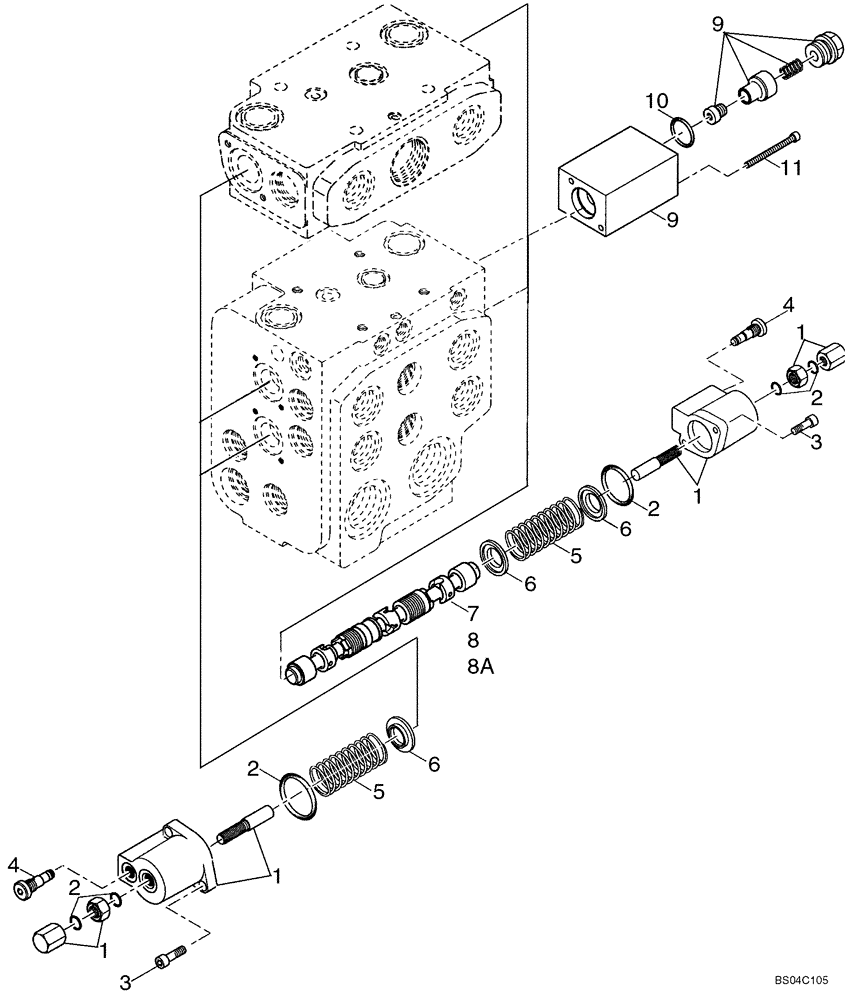

Схема запчастей Case 721D - (08-16B) - VALVE SECTION - BUCKET/BOOM/OPTIONAL SPOOLS (3 SPOOL VALVE) (Z-BAR) - IF USED (08) - HYDRAULICS
6
1
5
9
2
3
6
8
9
7
1
2
5
8a
4
3
6
2
1
11
10
4
1
2

Артикул

Название

Примечание

Количество

87440134

HYDRAULIC VALVE

Incl. 1 - 11; Includes Housing Assembly On Figure 08-16B; Replaces 8500494 Valve; If Used

1шт.

1

8602890

COVER

Component Parts Not Serviced Separately

5шт.

2

8604934

SEAL KIT

Load Sensing Control Block; Includes (29) O-Rings, Which Are Not Serviced Separately

1шт.

3

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

10шт.

4

8602924

CARTRIDGE

M12 x 1.5

5шт.

5

8602917

SPRING

6шт.

6

8602918

RETAINER

Spring

7шт.

7

8602894

SPOOL

Bucket and Optional

2шт.

8

8602895

SPOOL

Boom; Used with Ref 9

1шт.

9

8602891

COVER

Component Parts Not Serviced Separately

1шт.

10

8604972

O-RING

1шт.

11

8602892

HEX SOC SCREW,M6 x 105mm

Hex Socket; M6 x 105

2шт.

Выбрано товаров: 12
