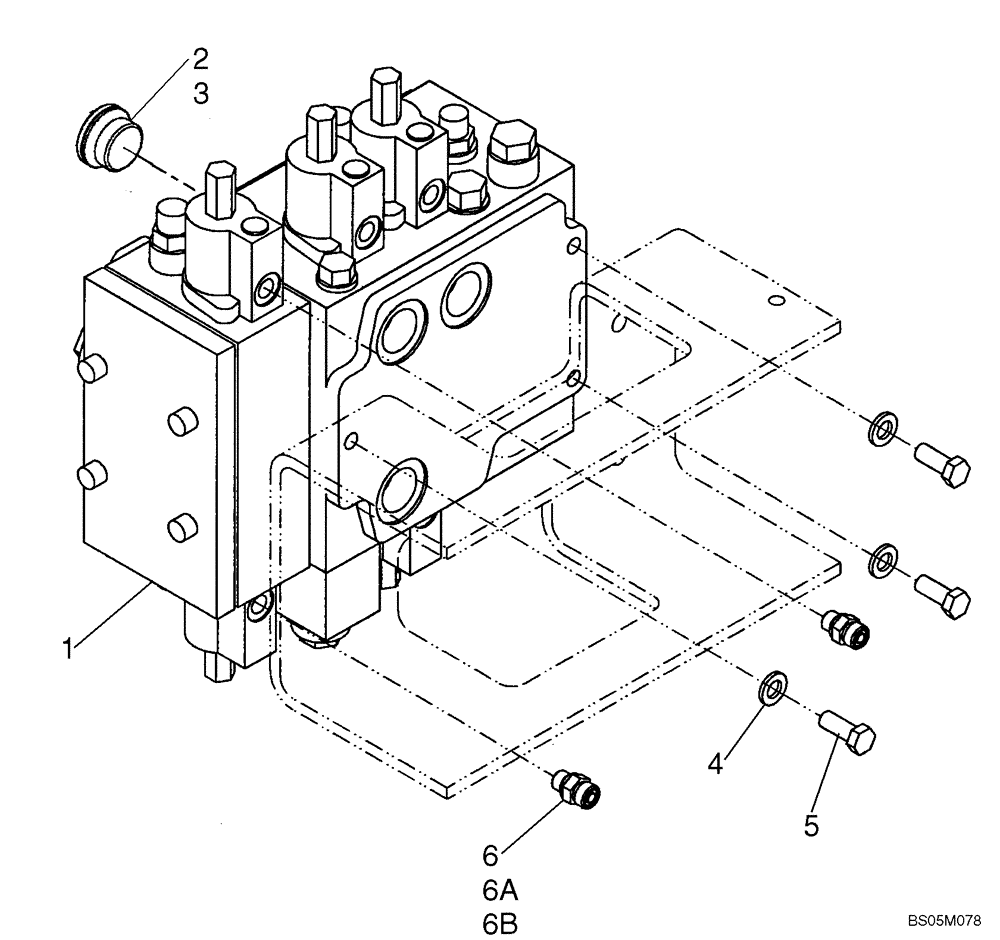

Запчасти Case 721D (08-16) - VALVE, CONTROL - MOUNTING, THREE SPOOL (Z-BAR/XT LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

Three Spool Valve Mounting, Z-Bar and XT

1шт.

1

87440134

HYDRAULIC VALVE

Three Spool; Z-Bar Loader; Replaces 8500494 Valve; See Figures 08-16A, 08-16B

1шт.

1

87539263

HYDRAULIC VALVE

Three Spool; Z-Bar Loader; Replaces 87450851; See Figures 08-16C, 08-16D

1шт.

1

87450854

HYDRAULIC VALVE

Three Spool; XT Loader; Replaces 8500497 Valve; See Figures 08-16E, 08-16F

1шт.

1

87539266

HYDRAULIC VALVE

Three Spool; XT Loader; Replaces 87310590 Valve; See Figures 08-16G, 08-16H

1шт.

2

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Incl. 3; Z-Bar Loader Valve

2шт.

3

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

5

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

6

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 6A, 6B; If Used

1шт.

6a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
