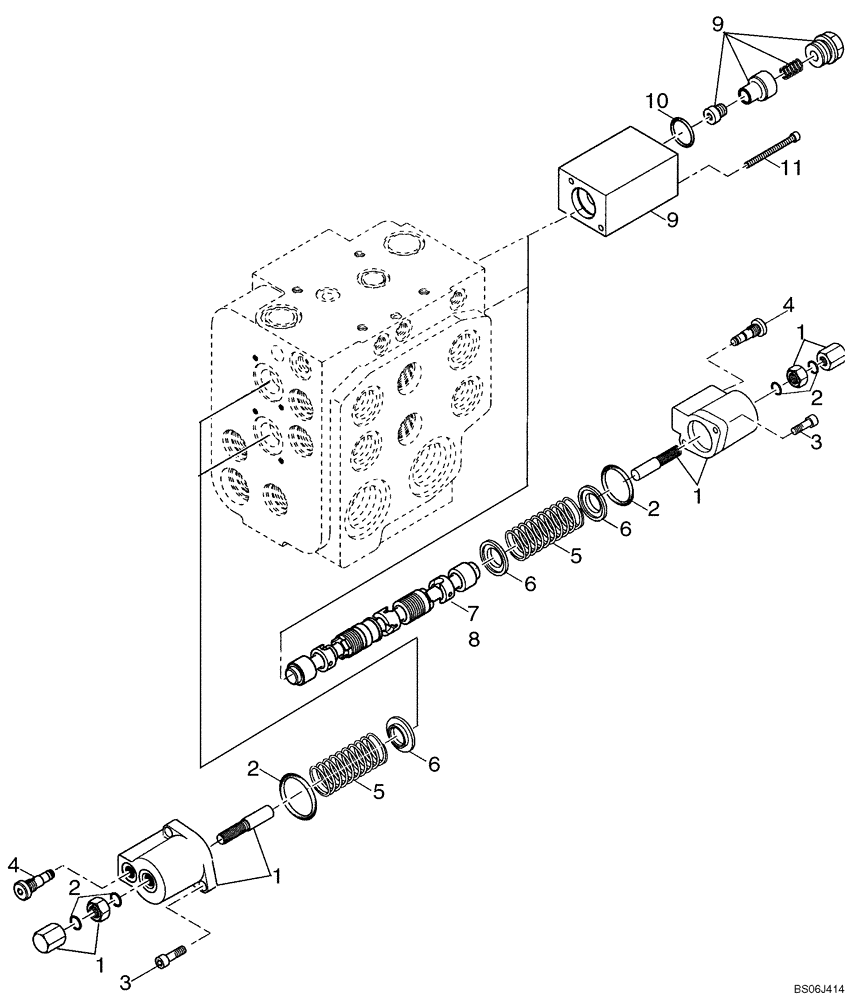

Запчасти Case 721D (08-15B) - VALVE SECTION - BUCKET/BOOM SPOOLS (TWO SPOOL VALVE) (Z-BAR) - IF USED (08) - HYDRAULICS

87440133

HYDRAULIC VALVE

Incl. 1 - 11; Includes Housing Assembly On Figure 08-15A; Replaces 8500493 Valve, If Used

1шт.

1

8602890

COVER

Component Parts Not Serviced Separately

3шт.

2

8604934

SEAL KIT

Load Sensing Control Block; Includes (29) O-Rings, Which Are Not Serviced Separately

1шт.

3

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

6шт.

4

8602924

CARTRIDGE

M12 x 1.5

3шт.

5

8602917

SPRING

4шт.

6

8602918

RETAINER

Spring

5шт.

7

8602894

SPOOL

Bucket; Lower

1шт.

8

8602895

SPOOL

Boom; Upper

1шт.

9

8602891

COVER

Component Parts Not Serviced Separately

1шт.

10

8604972

O-RING

1шт.

11

8602892

HEX SOC SCREW,M6 x 105mm

Hex Socket; M6 x 105

2шт.
