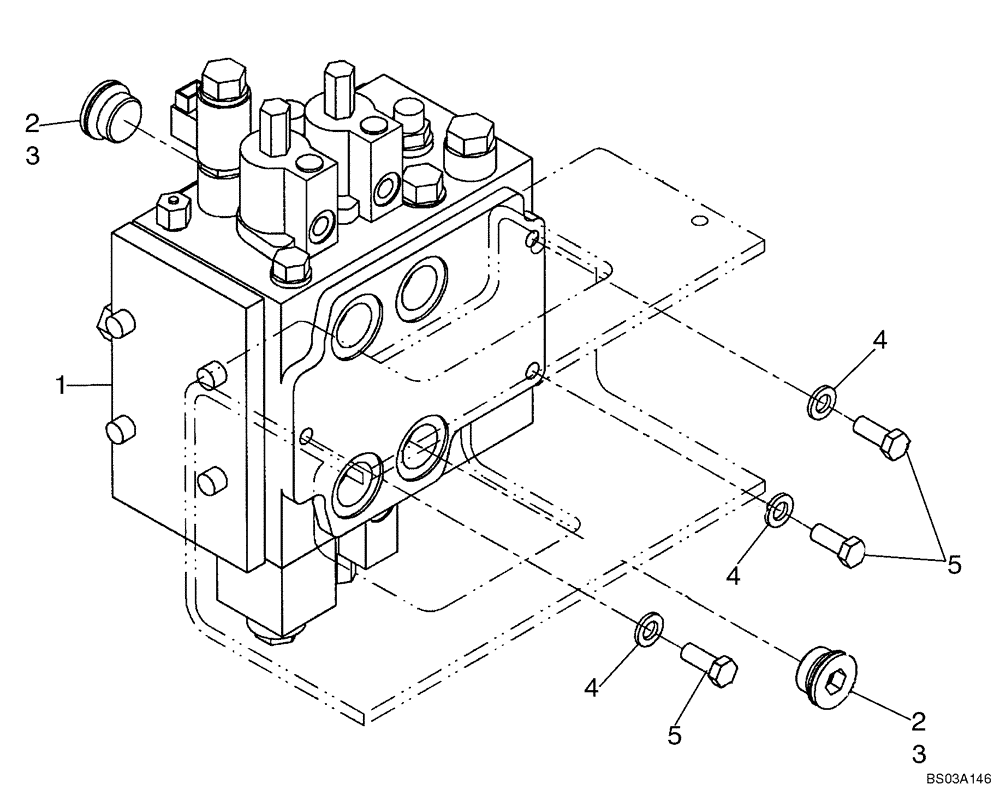

Запчасти Case 721D (08-15) - VALVE, CONTROL - MOUNTING, TWO SPOOL (Z-BAR/XT LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

Two Spool Valve Mounting, Z-Bar and XT

1шт.

1

87440133

HYDRAULIC VALVE

Two Spool; Z-Bar Loader Valve; Replaces 8500493 Valve; See Figures 08-15A, 08-15B

1шт.

1

87539262

HYDRAULIC VALVE

Two Spool; Z-Bar Loader Valve; Replaces 87450850 Valve; See Figures 08-15C, 08-15D

1шт.

1

87450853

HYDRAULIC VALVE

Two Spool; XT Loader Valve; Replaces 8500496 Valve; See Figures 08-15E, 08-15F

1шт.

1

87539265

HYDRAULIC VALVE

Two Spool; XT Loader Valve; Replaces 87310589 Valve; See Figures 08-15G, 08-15H

1шт.

2

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Incl. 3; Z-Bar Loader Valve

2шт.

3

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

5

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.
