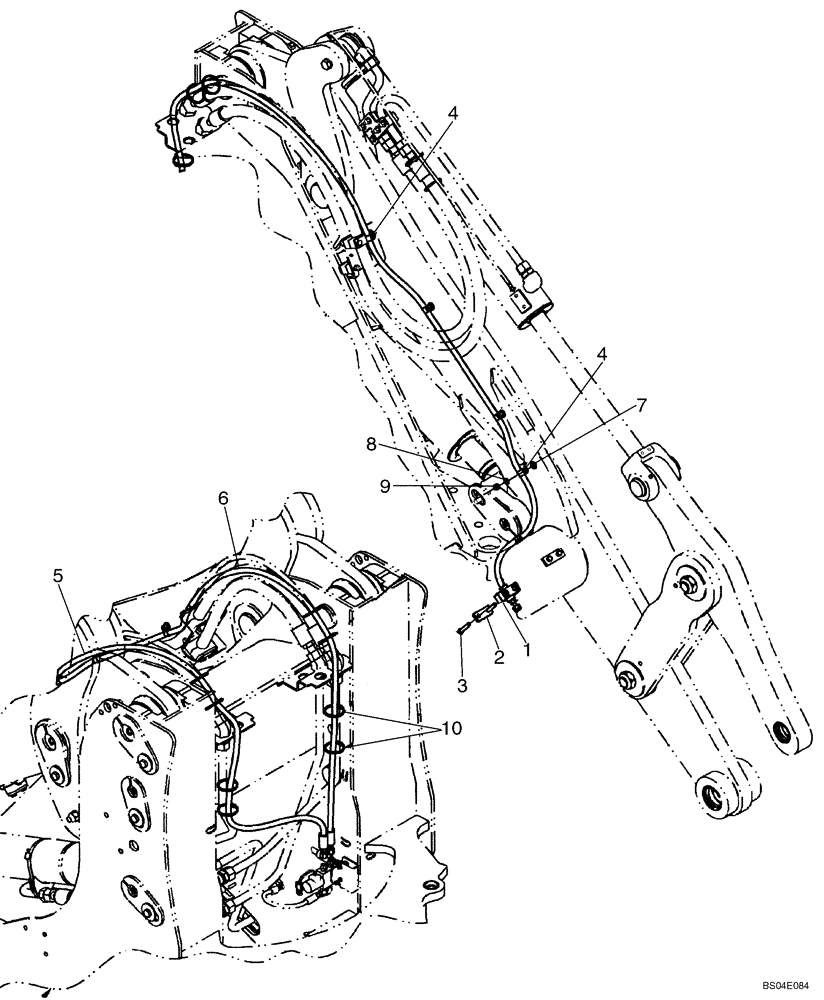

Запчасти Case 721D (08-14A) - HYDRAULIC LINES - COUPLER - XT (08) - HYDRAULICS

1

379374A1

BLOCK

Tube Mounting

2шт.

2

367658A1

PLATE

Clamp Cover

2шт.

3

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

4

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

8шт.

5

87437170

FLEXIBLE HOSE

XT Coupler; Left; 3545mm ( 139-1/2 in )

1шт.

6

87437075

FLEXIBLE HOSE

XT Coupler; Right; 3270mm ( 128-3/4 in )

1шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

8шт.
