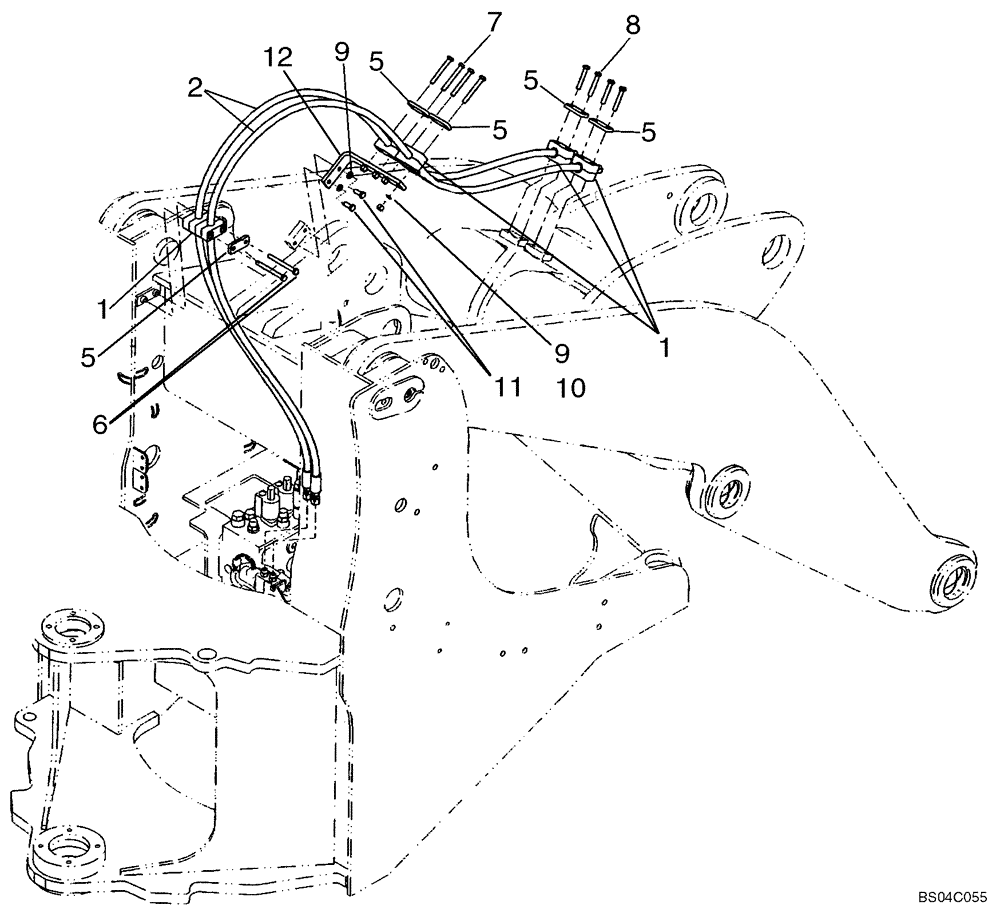

Запчасти Case 721D (08-14) - HYDRAULICS - COUPLER (Z-BAR LOADER) (08) - HYDRAULICS

1

379374A1

BLOCK

Mounting

6шт.

2

8500731

HOSE ASSY.

2765 mm (108-7/8 in); Coupler

2шт.

5

367658A1

PLATE

5шт.

6

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

Two Spool

2шт.

7

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

Two Spool

4шт.

8

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

Two Spool

4шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

12

396918A1

BRACKET

1шт.
