Запчасти Case 721D (08-13A) - HYDRAULICS - LOADER AUXILIARY - FOURTH SPOOL - ( XT LOADER) (08) - HYDRAULICS

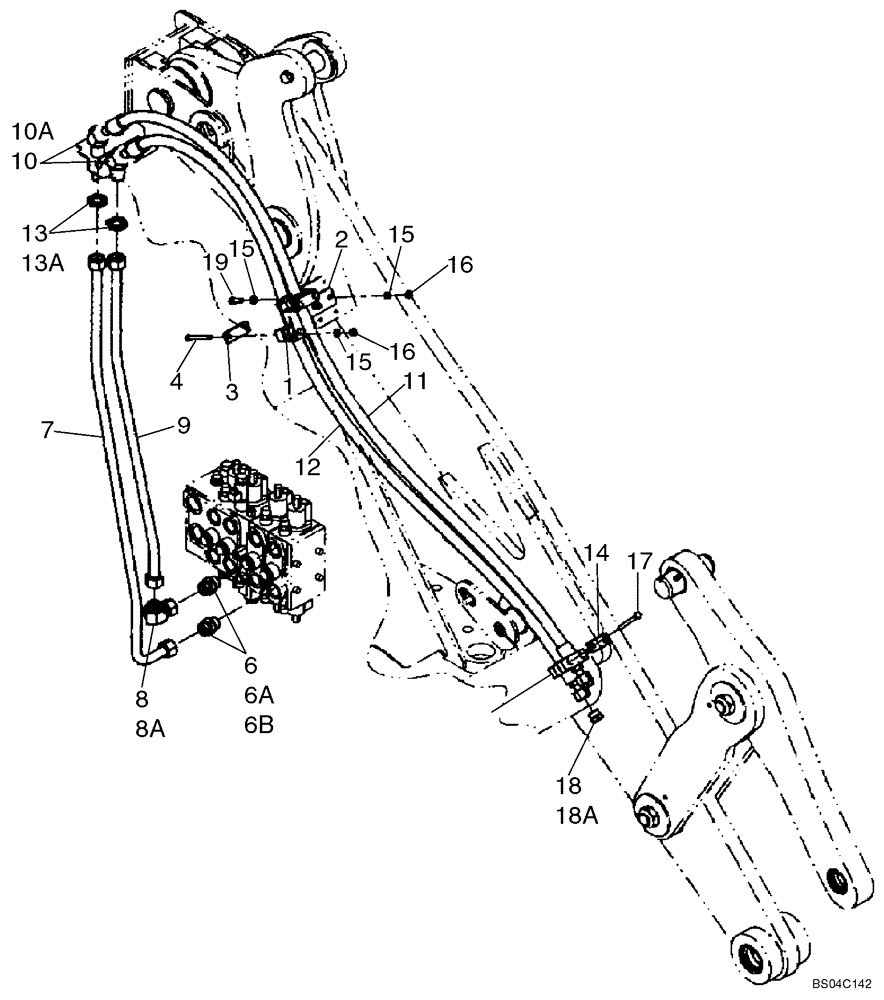

Схема запчастей Case 721D - (08-13A) - HYDRAULICS - LOADER AUXILIARY - FOURTH SPOOL - ( XT LOADER) (08) - HYDRAULICS
15
8
4
9
14
10a
12
2
18a
15
7
1
15
6a
19
13
11
8a
16
6
13a
6b
16
3
18
10
17

Артикул

Название

Примечание

Количество

1

87452747

CLAMP,33.4mm ID

Tube Mounting

2шт.

2

87444440

BRACKET

Hose Mounting

1шт.

3

8500858

PLATE

Clamp Cover

2шт.

4

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

5

372453A1

BLOCK

Tube Mounting

2шт.

6

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 ORFS x 33 ORB; Incl. 6A, 6B

2шт.

6a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

6b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7

87440544

HYD TUBE,25 mm OD x 949, 506 mm L

XT Accessory; Port B4

1шт.

8

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

25mm Or 1 in; Incl. 8A

1шт.

8a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End; Incl. 8A

2шт.

9

87440542

HYD TUBE,25 mm OD x 729, 431 mm L

XT Accessory; Port A4

1шт.

10

701-366

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

ORFS, 45deg BHD 25mm or 1.0 in; Incl. 10A

2шт.

10a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

2шт.

11

87436860

FLEXIBLE HOSE

2272mm ( 89 7/16 in. ); XT Accessory, Upper; B Port

1шт.

12

87436863

FLEXIBLE HOSE

2202 mm ( 86 11/16 in. ); Xt Acessory, Lower; A Port

1шт.

13

701-908

BHD LOCK NUT,1-7/16" - 12

Incl. 13A

2шт.

13a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

14

367658A1

PLATE

Clamp Cover

1шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

10шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

17

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

18

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Incl. 18A

2шт.

18a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

19

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

19

892-11010

LOCK WASHER,M10

2шт.

Выбрано товаров: 26
