Артикул
Название
Примечание
Количество
REF
INSTRUCTION
XT LOADER
1шт.
87440056

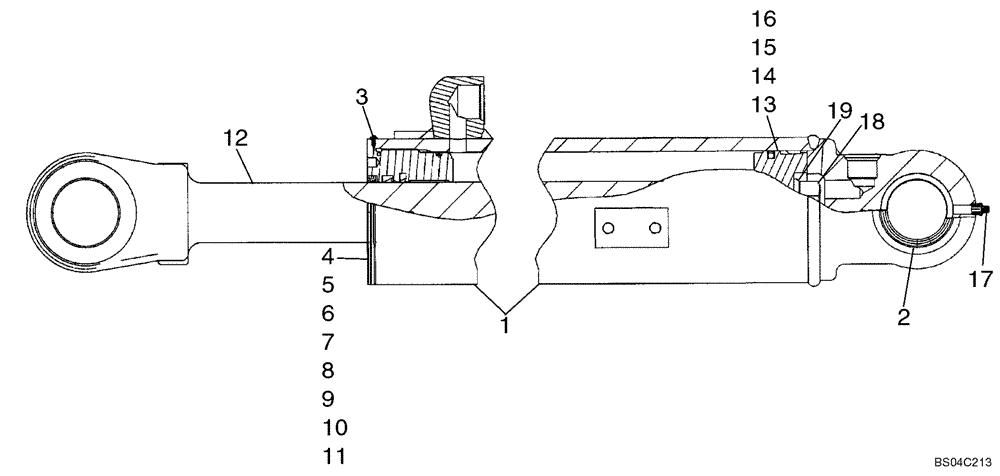

BUCKET CYLINDER,Double Acting, 57.2mm Rod, 856.5mm Stroke
1114mm ID x 856.5mm Stroke; Bucket; Incl. 1 - 22
1шт.
87437484
BUCKET CYLINDER
Incl. 2 - ????
1шт.
1
87437485
BARREL
Tube, Incl. 2
1шт.
2
87625614
BUSHING,57.44mm ID x 69.95mm OD x 20mm L
Replaces 363583A1
2шт.
3
86642312
SELF-TAP SCREW,Hex, #8 - 32 x 3/8"
1шт.
87437495
GLAND
Cylinder; Order Components; Incl. 4 - 11
1шт.
4
87437496
GLAND
1шт.
5
D95145
WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W
2шт.
6
NSS
NOT SOLD SEPARAT
Seal, Rod; Order Seal Kit 87440117
1шт.
7
NSS
NOT SOLD SEPARAT
Seal, Buffer Seal; Order Seal Kit 87440117
1шт.
8
336039A1
BUSHING
1шт.
9
238-5244
O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro
1шт.
10
G109300
RING,113.46mm ID x 118.97mm OD x 1.17mm Thk
1шт.
11
238-5243
O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro
1шт.
12
87437489
PISTON ROD
57.2mm dia
1шт.
G110251
PISTON ASSY.
Incl. 13- 16
1шт.
13
G110252
PISTON
1шт.
14
G101994
SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk
Rectangular Piston
1шт.
15
G101995
SEALING RING,Square, 5.28mm Thk x 100.71mm ID
SEALRING Ring, Loader
1шт.
16
G101996
WEAR RING,4.5" OD x 0.75" Thk
Wear Ring
1шт.
17
219-1
LUBE NIPPLE,1/8" - 27 NPTF
1шт.
18
86982442
SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"
Incl. 20
1шт.
19
NSS
NOT SOLD SEPARAT
Washer
1шт.
Выбрано товаров: 26
