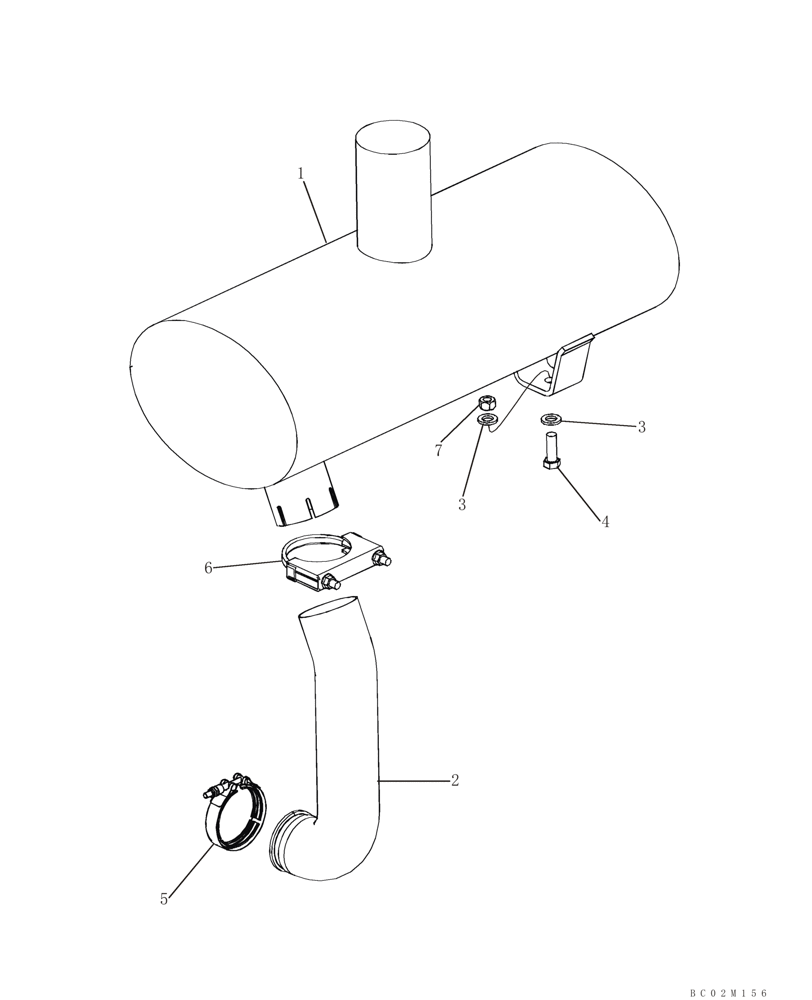

Запчасти Case 721D (02-11) - MUFFLER - EXHAUST SYSTEM (02) - ENGINE

1

8602052

MUFFLER

Spark Arresting

1шт.

2

8500087

TUBE,66.50 mm ID x 76.20 mm OD x 347, 100 mm L

Exhaust

1шт.

2

87363782

TUBE,76.2 mm OD x 347, 100 mm L

Exhaust; Replaces 8500087

1шт.

2

87516045

TUBE,72.2 mm ID x 76.2 mm OD x 347, 100 mm L

Exhaust; With Flex; Replaces 87363782

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

4

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

5

J903652

CLAMP

1шт.

6

299456A1

CLAMP,80.5mm ID

1шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.
