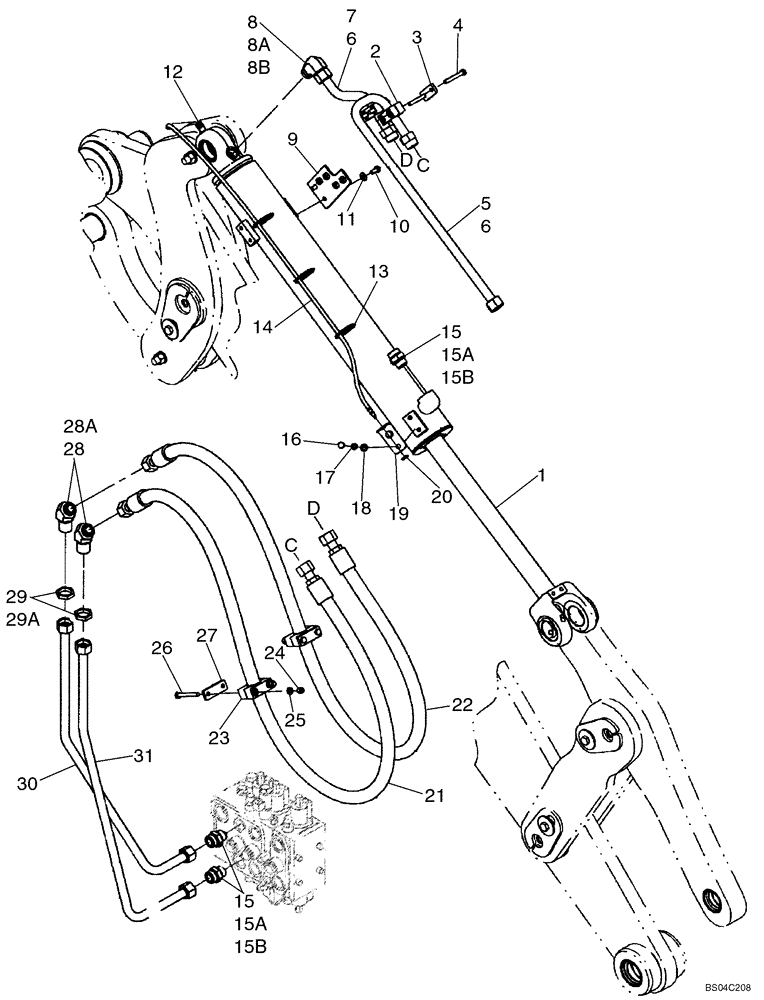

Запчасти Case 721D (08-11A) - HYDRAULICS - LOADER BUCKET ( XT) RIGHT SIDE COMPONENTS (08) - HYDRAULICS

REF

INSTRUCTION

XT LOADER LEFT SIDE COMPONENTS

1шт.

1

87440056

BUCKET CYLINDER,Double Acting, 57.2mm Rod, 856.5mm Stroke

Tilt; 114mm Bore; 856.5mm Stroke; See Figure 08-11E; Replaced By 87324809

1шт.

1

87324809

BUCKET CYLINDER,Double Acting, 57.2mm Rod, 856.5mm Stroke

Tilt; 114mm Bore; 856.5mm Stroke; See Figure 08-11F

1шт.

87324809R

REMAN-HYD CYLINDER

721D (1/03-)

1шт.

87324809C

CORE-HYD CYLINDER

Return Number

1шт.

2

367489A1

BLOCK

Tube Mounting

2шт.

3

367658A1

PLATE

Clamp Cover

2шт.

4

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

5

87444574

HYD TUBE,25 mm OD x 724, 117 mm L

Right Tilt Rod

2шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

2шт.

7

87444578

HYD TUBE,25 mm OD x 266, 124 mm L

Right Tilt Base

1шт.

8

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 8A, 8B

1шт.

8a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

8b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

9

87444684

BRACKET

Right Tilt Tubes

1шт.

10

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

12

328082A1

ELBOW

90 deg, long

1шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

14

87444057

FLEXIBLE HOSE

Grease; 1223mm ( 48-1/8 in )

1шт.

15

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 15A, 15B

4шт.

15a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

15b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

17

892-11010

LOCK WASHER,M10

2шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

19

87441374

BRACKET

Grease Line

1шт.

20

F53473

LOCK NUT,1/8-27 NPSM

1шт.

21

87436779

FLEXIBLE HOSE,25.4mm ID x 2333mm L, SAE 100R12

2333 mm (91-7/8 in); Tilt Rod

1шт.

22

87436780

FLEXIBLE HOSE,25.4mm ID x 2293mm L, SAE 100R12

2293 mm (90-1/4 in), Tilt Base

1шт.

23

87444561

BLOCK

Tube Mounting

2шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

26

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

27

8500858

PLATE

Clamp Cover

2шт.

28

701-366

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

ORFS; 45 deg; 25mm or 1.0 in; Incl. 28A

2шт.

28a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

29

701-908

BHD LOCK NUT,1-7/16" - 12

Incl. 29A

2шт.

29a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

30

87439869

HYD TUBE,25 mm OD x 817, 275 mm L

Right Tilt Base

1шт.

31

87439867

HYD TUBE,25 mm OD x 909, 234 mm L

Right Tilt Rod

1шт.
