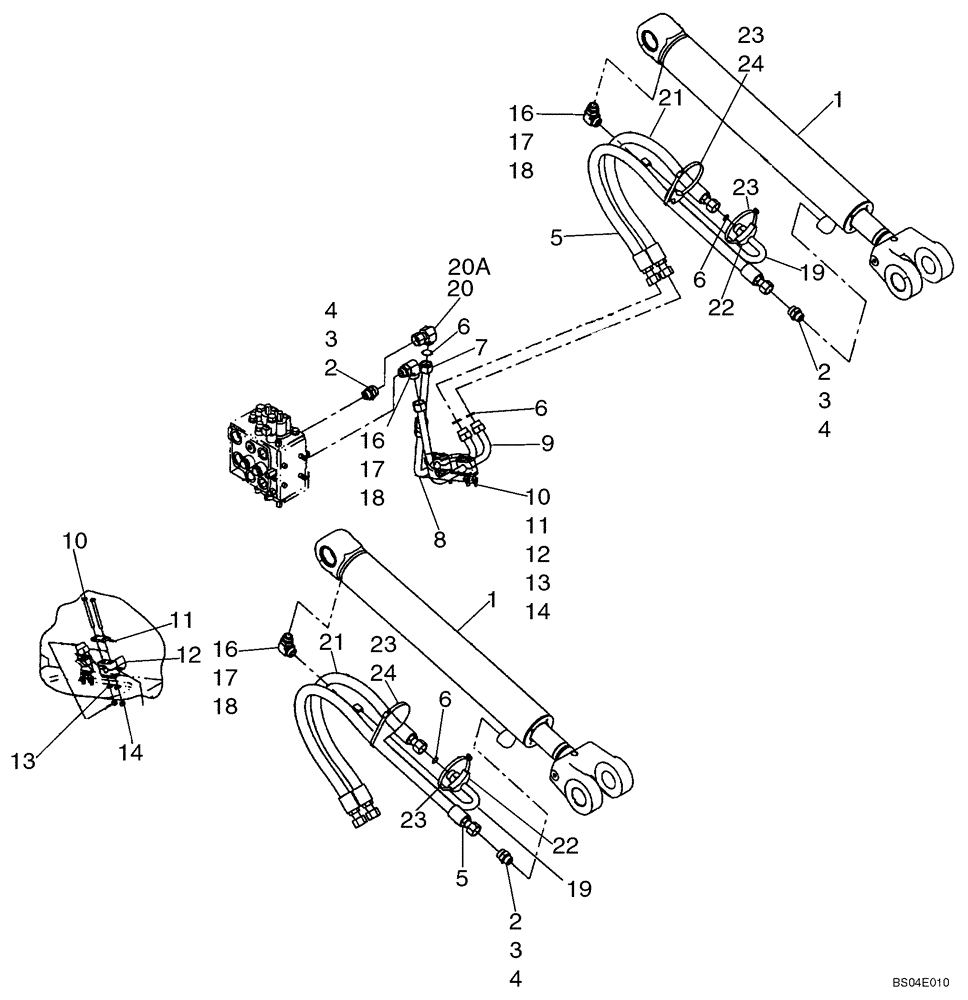

Запчасти Case 721D (08-10) - HYDRAULICS - LOADER LIFT ( Z-BAR ) (08) - HYDRAULICS

1

8605290

LIFT CYLINDER

Lift; See Figure 08-10C; Replaced By 87318066

1шт.

87319194R

REMAN-HYD CYLINDER

721D (1/03-), Reman For New P/N 8605290

1шт.

87319194C

CORE-HYD CYLINDER

Return Number

1шт.

1

87318066

LIFT CYLINDER

See Figure 08-10D

2шт.

87319194R

REMAN-HYD CYLINDER

721D (1/03-), Reman For New P/N 87318066

2шт.

87319194C

CORE-HYD CYLINDER

87319194C

1шт.

2

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 3, 4

3шт.

3

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

4

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5

87659631

HYDRAULIC HOSE,25.4mm ID x 1525mm L, SAE 100R12

1525 mm (60 in); Lift Rod; Replaces 8500551

2шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

6шт.

7

8501057

HYD TUBE

LH; Lower

1шт.

8

8501055

HYD TUBE

LH; Lower

1шт.

9

8500519

HYD TUBE

LH; Raise

1шт.

10

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

8шт.

11

367658A1

PLATE

8шт.

12

367489A1

BLOCK

4шт.

13

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

16

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 17, 18

3шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

18

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

19

8500547

HYD TUBE

Lift Cylinder

2шт.

20

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl. 20A

1шт.

20a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

21

87659635

HYDRAULIC HOSE,25.4mm ID x 1103mm L, SAE 100R12

1103 mm (43-7/16 in); Lift; Replaces 8500552

2шт.

22

391133A1

CLAMP

2шт.

23

214-14104

HOSE CLAMP,155.45mm - 177.8mm

4шт.

24

8500550

BLOCK

2шт.
