(08-09A) - VALVE ASSY - COOLING SYSTEM

Запчасти Case 721D (08-09A) - VALVE ASSY - COOLING SYSTEM (08) - HYDRAULICS

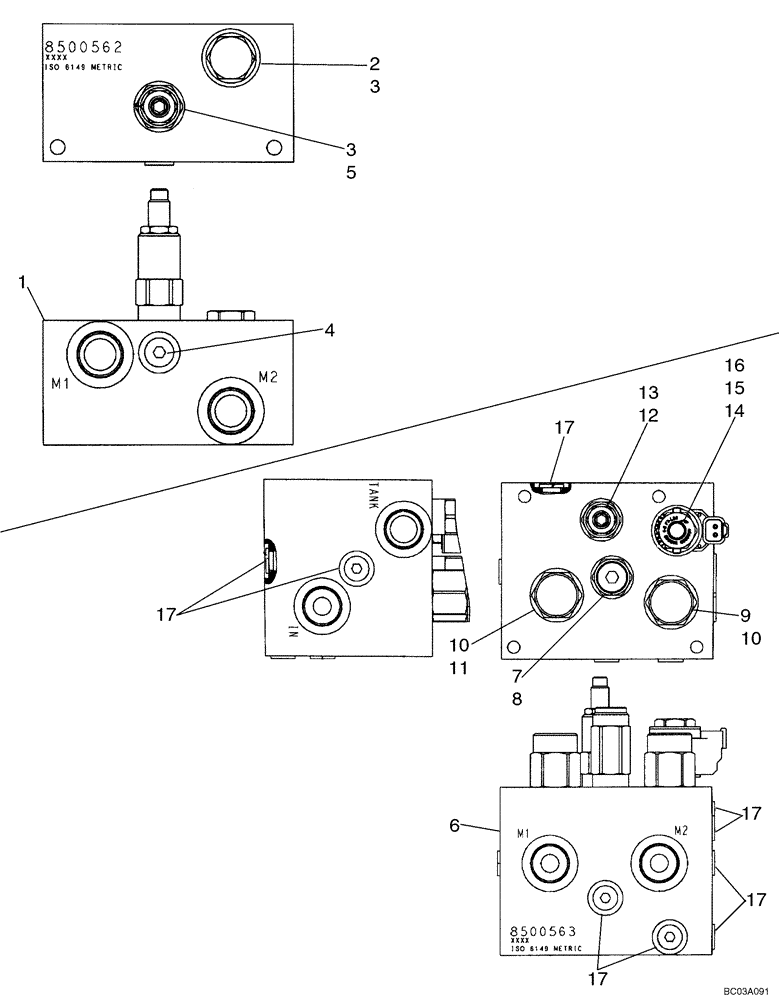

Схема запчастей Case 721D - (08-09A) - VALVE ASSY - COOLING SYSTEM (08) - HYDRAULICS
11
6
17
15
17
10
7
14
17
8
10
12
1
3
5
4
17
16
13
2
3
9
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

FAN RELIEF VALVE

1шт.

REF

INSTRUCTION

IF USED

1шт.

1

8500562

HYDRAULIC VALVE

Fan Relief; Incl. 2 - 5

1шт.

2

8605073

VALVE, CHECK

Incl. 3

1шт.

3

1542830C2

SEAL KIT

1шт.

4

9625178

PLUG,9/16" - 18 ORB

1шт.

5

8605070

VALVE PRESSURE RELIE

Pilot Operated; Incl. 3

1шт.

REF

INSTRUCTION

FAN REVERSER VALVE

1шт.

REF

INSTRUCTION

IF USED

1шт.

6

8500563

HYDRAULIC VALVE

Fan Reverser; Incl. 7 - 17

1шт.

7

8605053

VALVE PRESSURE RELIE

Incl. 8

1шт.

8

1542833C1

SEAL KIT

1шт.

9

8605056

PILOT VALVE

Directional; Incl. 10

1шт.

10

388744A1

SEAL KIT

Seal; Includes (4) O-Rings and (6) Back-Up Rings

1шт.

11

8605059

PILOT VALVE

Directional; Incl. 10

1шт.

12

8605070

VALVE PRESSURE RELIE

Pilot Operated; Incl. 13

1шт.

13

1542830C2

SEAL KIT

1шт.

14

8605066

VALVE PRESSURE RELIE

Solenoid Cartridge; Incl. 15

1шт.

15

329483A1

SEAL KIT

Includes (3) O-Rings and (4) Back-Up Rings

1шт.

16

8605069

COIL

Electronic

1шт.

17

9625178

PLUG,9/16" - 18 ORB

9шт.
