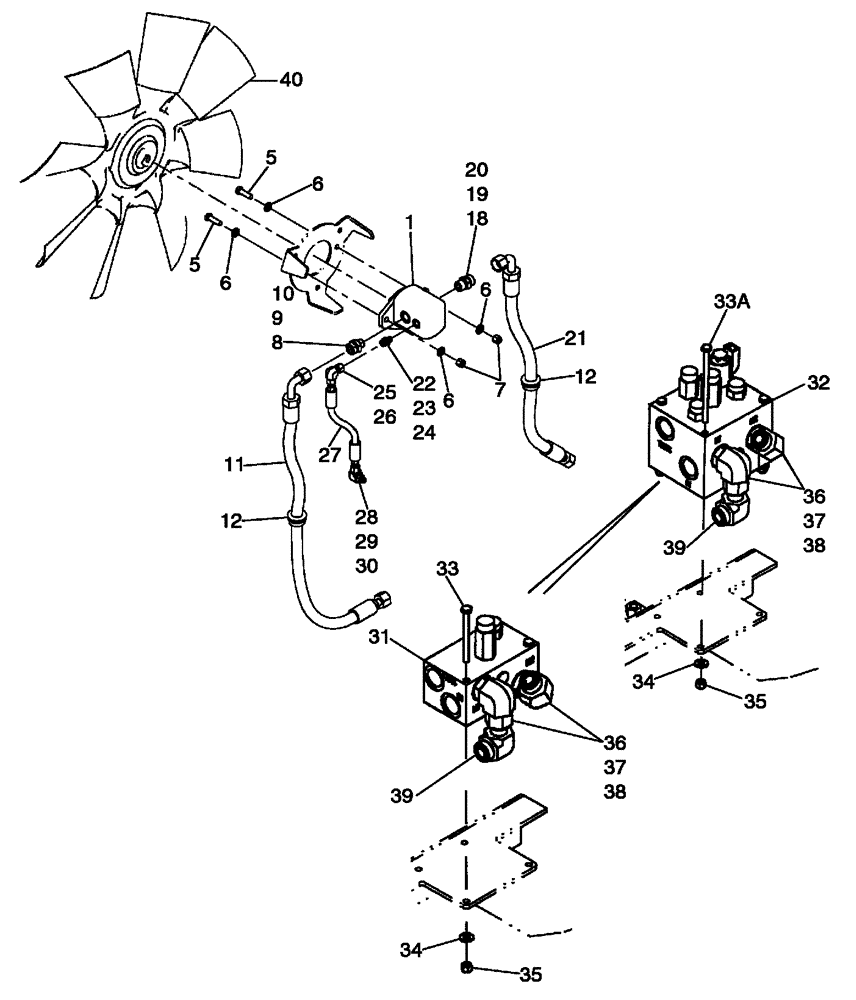

Запчасти Case 721D (08-09) - HYDRAULICS - FAN DRIVE (08) - HYDRAULICS

1

8500105

HYDRAULIC MOTOR,GEAR, 23 CC

Reversible Fan;

1шт.

8500105R

REMAN-HYD MOTOR

721D (1/03-)

1шт.

8500105C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

86991683

SEAL KIT

Seal; Not Illustrated Used for Ref 1

1шт.

5

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Replaces 895-11012

4шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

8

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl. 9, 10

1шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

10

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

11

8605293

FLEXIBLE HOSE

1140 mm ( 44 7/16 in ); Fan Forward

1шт.

12

8500186

GROMMET

2шт.

18

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 19, 20

1шт.

19

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

20

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

21

8605292

FLEXIBLE HOSE,19.05mm ID x 880mm L, SAE 100R17

880 mm ( 34 5/8 in ); Fan Reverse

1шт.

22

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 23, 24

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

24

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

25

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 26

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

27

8500183

FLEXIBLE HOSE

309 mm (12 3/16 in ); Drain

1шт.

28

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 29, 30

1шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

30

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

31

8500562

HYDRAULIC VALVE

Fan Relief; If Used; See Figure 08-09A

1шт.

32

8500563

HYDRAULIC VALVE

Fan Reverser; If Used; See Figure 08-09A

1шт.

33

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

Replaces 827-8090

2шт.

33a

814-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

4шт.

34

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2-4шт.

35

832-10408

NUT,M8 x 1.25, Cl 8.8

2-4шт.

36

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

20mm ORFS x M27 Boss, Incl. 38, 39

2шт.

37

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss End

1шт.

38

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face End

1шт.

39

701-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

90 deg Swivel O-Ring Face Seal 20MM; Incl. 38

1шт.

40

87700025

FAN,8 Blades, 711.2mm OD

1шт.
