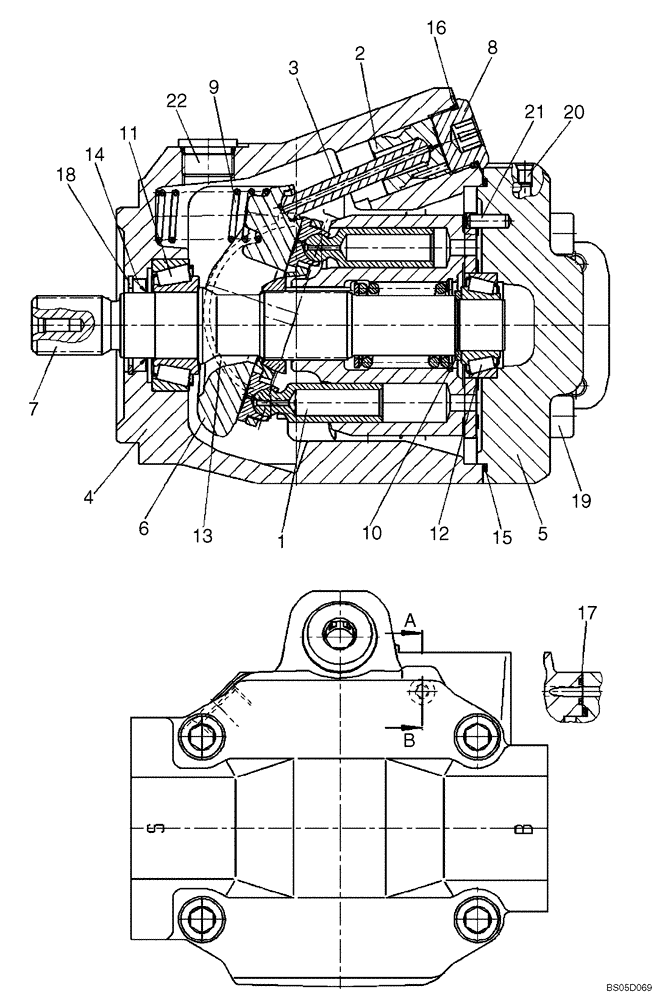

Запчасти Case 721D (08-08E) - PUMP ASSY (08) - HYDRAULICS

8500387

HYDRAULIC PUMP

43 and 65 cc; Piston; Front

1шт.

8604947

HYDRAULIC PUMP

10 Volt, 65 cc; Front Variable Displacement

1шт.

8602879R

REMAN-HYD PUMP

721D CASE WHEEL LOADER (NORTH AMERICA) (1/03-); Reman For New P/N 8604947

1шт.

8602879C

CORE-INJECTION PUMP

Return Number

1шт.

8604950

HYDRAULIC PUMP

10 Volt, 43 cc; Variable Displacement; Rear

1шт.

8602811

HYDRAULIC PUMP

1шт.

8602814

HYDRAULIC VALVE

Base Unit; Incl.1 - 22

1шт.

1

8602815

PISTON

Rotary Group Pump

1шт.

2

8602816

CONTROL

Piston

1шт.

3

8602817

PUMP

1шт.

4

8602818

HOUSING

Pump

1шт.

5

8602819

PLATE

Port

1шт.

6

8602820

SWASH PLATE

Swash

1шт.

7

8602821

SHAFT

Drive

1шт.

8

8602822

PLUG

M27 x 2-12.5

1шт.

9

8602823

SPRING

1шт.

10

8602824

SHIM

30 x 22.1 x 3

1шт.

11

8602825

TAPERED BEARING

1шт.

12

8602826

TAPERED BEARING,21.99mm ID x 45.24mm OD x 15.5mm W

1шт.

13

8602827

SHELL

Shell

2шт.

14

8602828

SEAL

28 x 40 x 6; Shaft

1шт.

15

8602829

O-RING,120mm ID x 2.5mm Width

120 x 2.5

1шт.

16

8604956

O-RING,2.5mm Thk x 125mm ID

125 x 2.5

1шт.

17

8604955

O-RING,7.65mm ID x 1.68mm Width

7.65 x 1.68

1шт.

18

8602830

RING

Seeger

1шт.

19

8602831

NUT

M12 x 45; 10,9; Socket

4шт.

20

8604958

PLUG

M6; Tear-Off

1шт.

21

8602832

PIN

M6 x 18; Dowel

1шт.

22

8602833

PLUG

M22 x 1.5

1шт.
