Запчасти Case 721D (08-08B) - PUMP ASSY (08) - HYDRAULICS

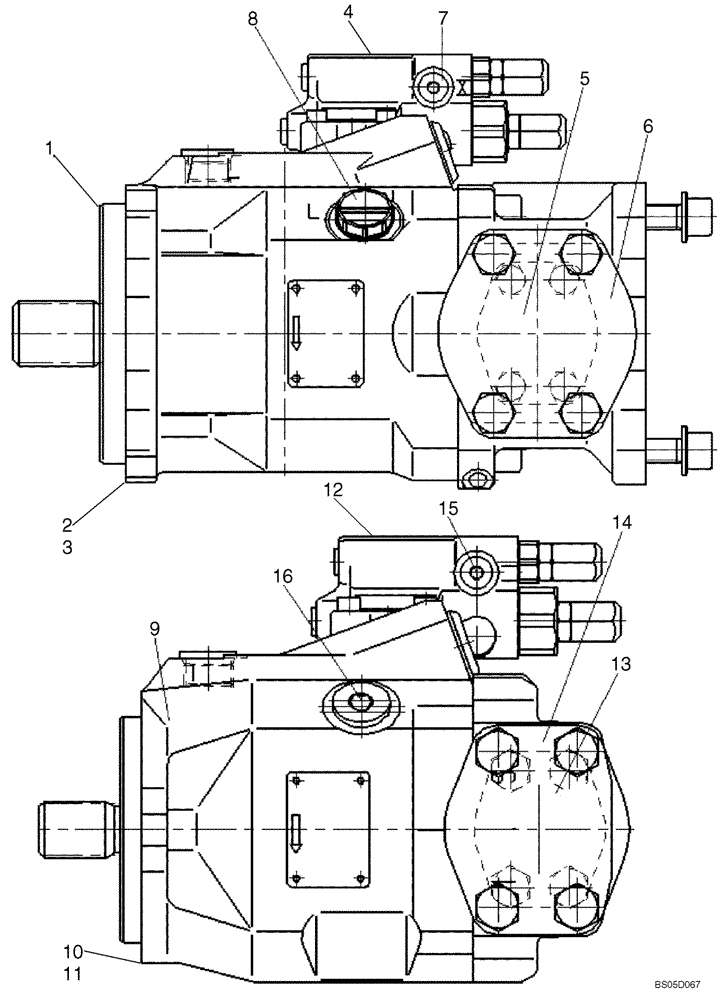

Схема запчастей Case 721D - (08-08B) - PUMP ASSY (08) - HYDRAULICS
4
6
2
13
15
14
3
9
11
7
5
10
8
16
12
1

Артикул

Название

Примечание

Количество

8604947

HYDRAULIC PUMP

Front Variable Displacement; Includes 1 - 8

1шт.

8604950

HYDRAULIC PUMP

Variable Displacement; Rear; Includes 9 - 16

1шт.

8602880R

REMAN-HYD PUMP

721D (1/03-), Reman for New P/N 8604950

1шт.

8602880C

CORE-HYDRAULIC PUMP

Return Number

1шт.

REF

INSTRUCTION

FOR FRONT PUMP

1шт.

1

8602845

HYDRAULIC PUMP

1шт.

2

8602847

HYDRAULIC VALVE

Base Unit; Includes 3; See Figure 08-08C

1шт.

3

8602848

HYDRAULIC VALVE

Rotary Group; See Figure 08-08D

1шт.

4

8604960

CONTROL VALVE

See Figure 08-08D

1шт.

5

8602812

COVER

Flange Assembly; Includes Flange, Gasket and 4 Screws

1шт.

6

8602846

COVER

Flange Assembly; Includes Flange, Gasket and 4 Screws

1шт.

7

8604962

SCREW

Seal

1шт.

8

8604961

SCREW

Seal

1шт.

REF

INSTRUCTION

FOR REAR PUMP

1шт.

9

8602811

HYDRAULIC PUMP

1шт.

10

8602814

HYDRAULIC VALVE

Base Unit; Includes 11; See Figure 08-08E

1шт.

11

8602834

HYDRAULIC PUMP

Rotary Group; See Figure 08-08F

1шт.

12

8604960

CONTROL VALVE

See Figure 08-08F

1шт.

13

8602812

COVER

Flange Assembly; Includes Flange, Gasket and 4 Screws

1шт.

14

8602813

COVER

Flange Assembly; Includes Flange, Gasket and 4 Screws

1шт.

15

8604962

SCREW

Seal

1шт.

16

8604961

SCREW

Sealing

1шт.

Выбрано товаров: 22
