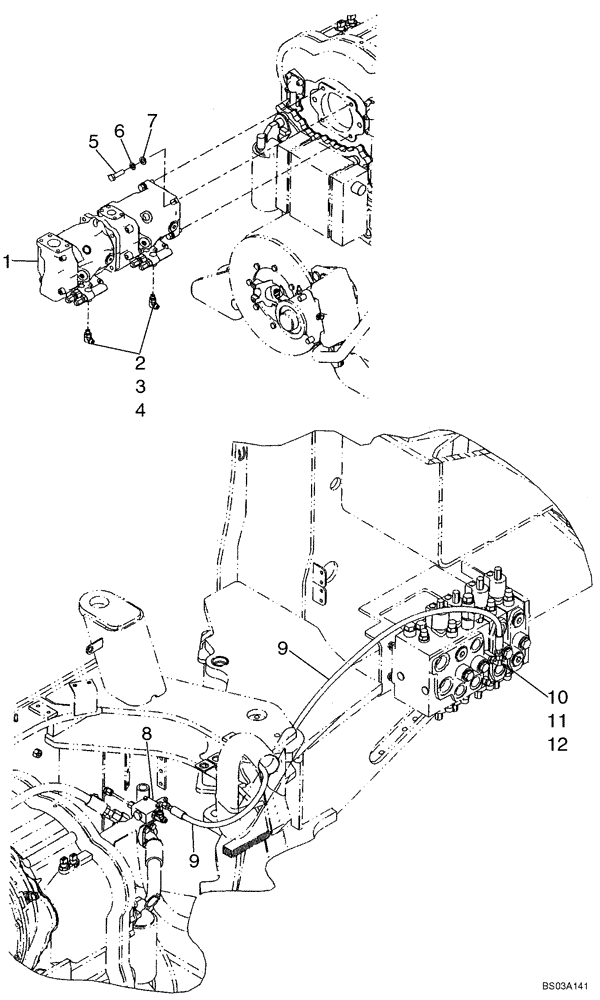

Запчасти Case 721D (08-08A) - HYDRAULIC - HYDRAULIC PUMP (08) - HYDRAULICS

1

8500387

HYDRAULIC PUMP

See Figure 08-08B

1шт.

2

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 3, 4

2шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

4

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

6

892-11012

LOCK WASHER,M12

4шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

8

8501195

HYDRAULIC VALVE

1шт.

9

8500320

FLEXIBLE HOSE

2527 mm (99-1/2 in); Articulation Load Sense

1шт.

10

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. 11, 12

1шт.

11

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

12

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
