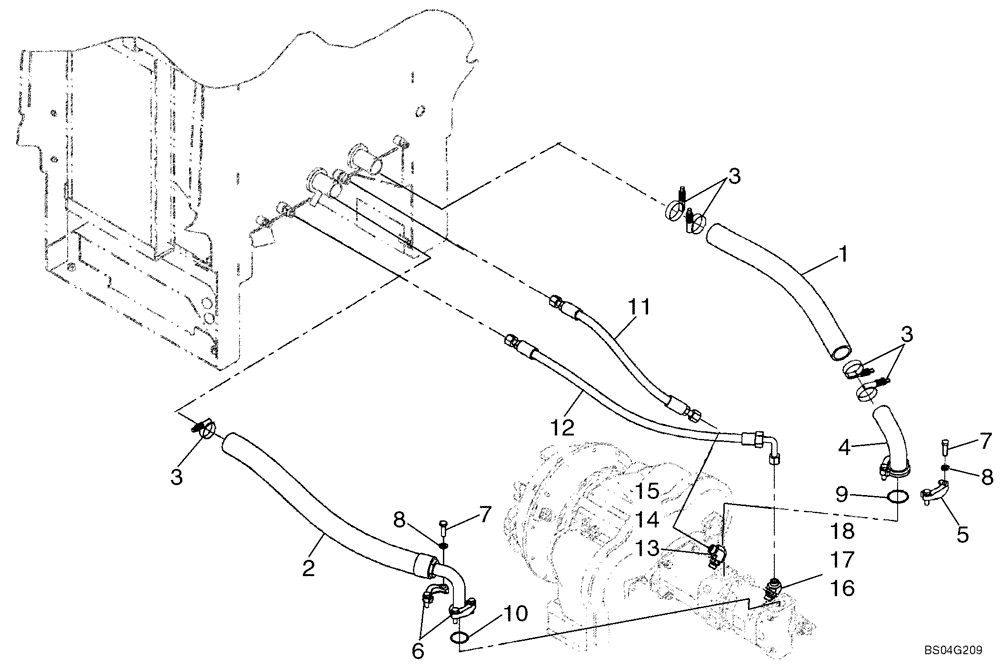

Запчасти Case 721D (08-04A) - HYDRAULICS- COOLING FRAME TO PUMP (08) - HYDRAULICS

1

8602648

HYDRAULIC HOSE,50.80 mm ID x 645.00 mm, SAE 100R4 Class 4 Type 2

Large Pump Suction

1шт.

2

8501009

FLEXIBLE HOSE

935 mm (36 13/16 in); Small Pump Suction

1шт.

3

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Replaces L126871

5шт.

4

8602646

TUBE,50.80 mm OD x 130, 100 mm L

Pump Suction

1шт.

5

A14141

FLANGE

2шт.

6

A14157

FLANGE

2шт.

7

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

9

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

10

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

11

8500363

FLEXIBLE HOSE

648 mm (25 1/2 in); Large Case Drain

1шт.

12

8501008

FLEXIBLE HOSE

92.6 mm (36 15/32 in); Small Case Drain

1шт.

13

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

16mm O-Ring Face Seal x M22 Boss; Incl. 14, 15

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

15

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

16

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

16mm O-Ring Face Seal x M22 Boss; Incl. 17, 18

1шт.

17

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

18

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.
