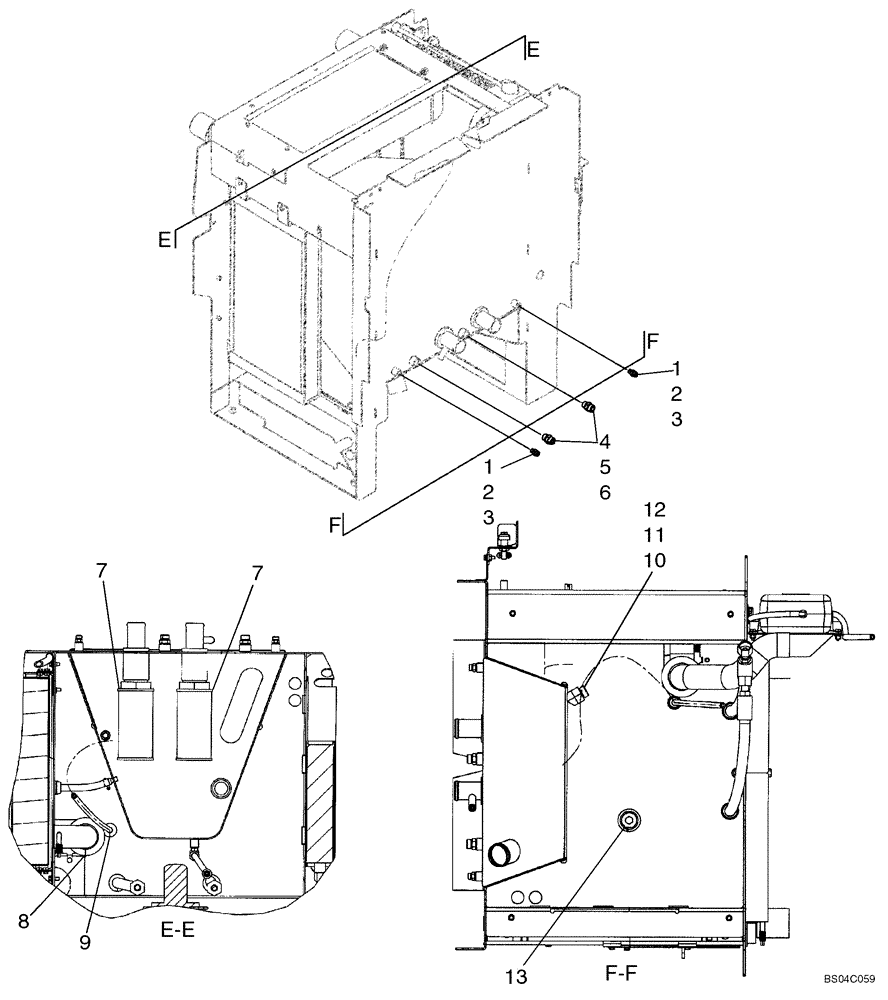

Запчасти Case 721D (08-02) - HYDRAULIC RESERVOIR - FILTER (08) - HYDRAULICS

1

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

10mm ORFS x M14 ORB; Incl. 2, 3

2шт.

2

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

16mm ORFS x M22 ORB; Incl. 5, 6

2шт.

5

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

6

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss

1шт.

7

L128515

STRAINER ELEMENT

Hydraulic Tank

2шт.

8

8500167

SEAL

1шт.

9

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

10

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 11, 12

1шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

12

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

13

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.
