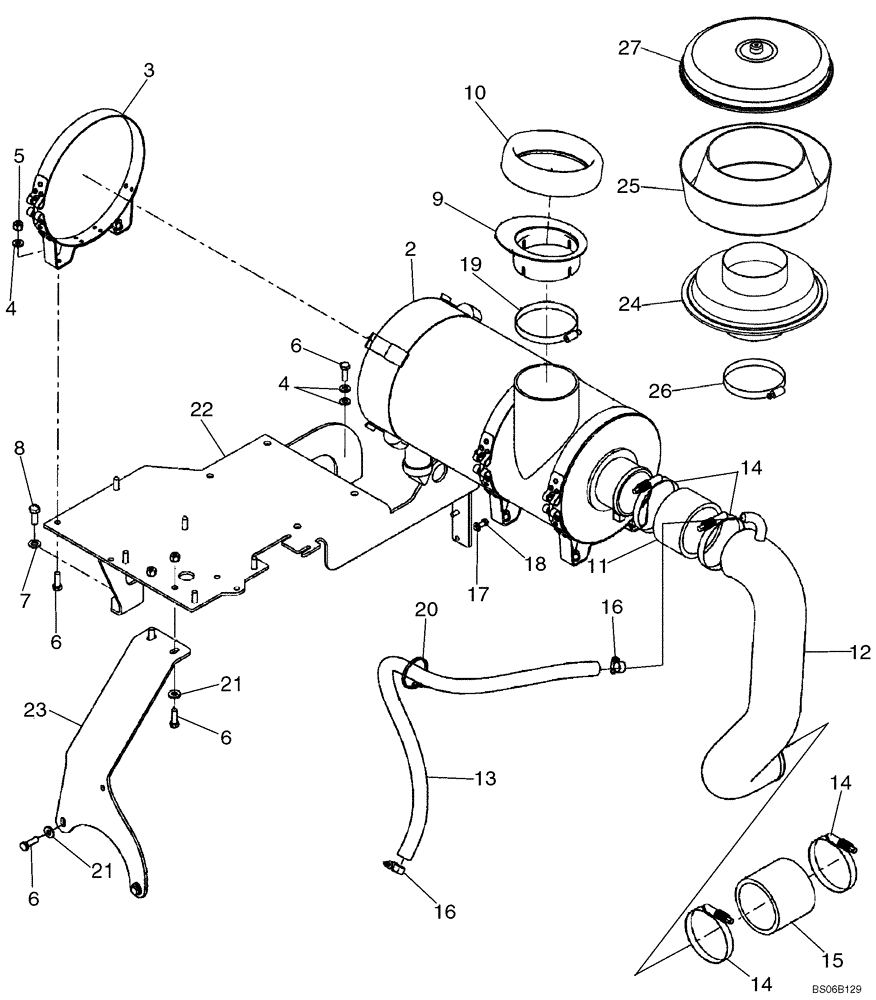

Запчасти Case 721D (02-08) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

2

8500068

AIR CLEANER

See Figure 02-09

1шт.

3

8605331

CLAMP

3шт.

4

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

10шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

10шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

8

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

9

8500383

PIPE

Intake

1шт.

10

8500403

SEAL

1шт.

11

8501205

INTAKE AIR HOSE,101.60 mm ID x 73.00 mm, SAE J200

73 mm (2 7/8 in); Air Cleaner

1шт.

12

8602473

AIR INTAKE TUBE

Air Cleaner Intake

1шт.

13

8501206

HOSE,19.05 mm ID x 1050.00 mm, SAE 30R2 Type 1

Crankcase Ventilation

1шт.

14

L127771

CLAMP,107.95mm - 130.18mm

4шт.

15

8602478

INTAKE AIR HOSE,101.60 mm ID x 100.00 mm, SAE J200

100 mm (4 in); Air Cleaner

1шт.

16

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

17

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

18

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

19

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

1шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

21

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

22

8604733

BRACKET

Muffler, Air Cleaner; If Used

1шт.

22

87446946

BRACKET

Muffler, Air Cleaner; If Used

1шт.

23

87437892

BRACKET

Air Cleaner; Replaces 8605495, 8605863, 87433055

1шт.

258541A1

PRECLEANER

Air Inlet; Incl. 24-27

1шт.

24

NSS

NOT SOLD SEPARAT

Sleeve Assy.

1шт.

25

L30671

HOUSING

1шт.

26

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

1шт.

27

L30669

COVER

1шт.
