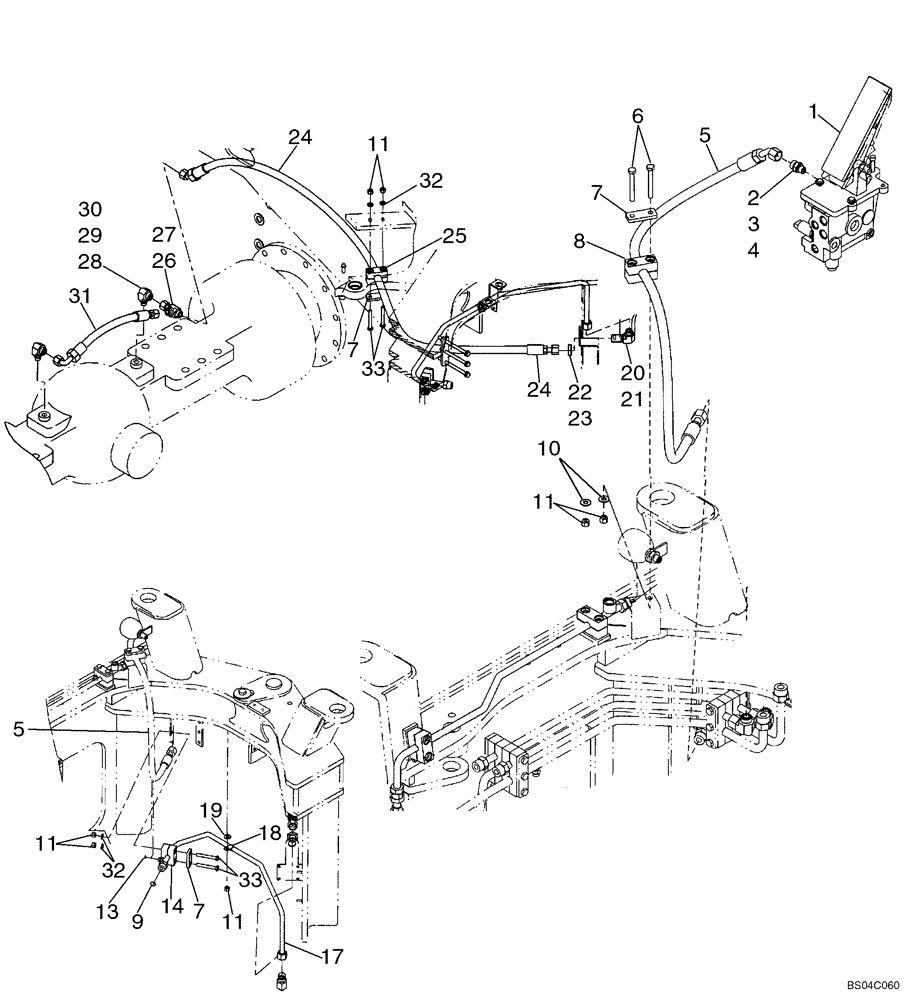

Запчасти Case 721D (07-07) - HYDRAULICS - BRAKE, MAIN - FRONT AXLE (07) - BRAKES

1

8603087

BRAKE VALVE

Main, See Figure 07-08

1шт.

1

8603087R

REMAN-HYD VALVE

Main, See Figure 07-08

1шт.

1

8603087C

CORE-VALVE HYD

Core Return Number

1шт.

2

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 3, 4

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

4

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5

8500202

FLEXIBLE HOSE

1388 mm (54 - 21/32 in); Front Axle Brake

1шт.

6

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

7

367658A1

PLATE

3шт.

8

8501052

SPECIAL CLAMP

No Longer Used For This Application; Hole Diameter 22.2mm

1шт.

8

379374A1

BLOCK

Hole Diameter 19mm

1шт.

9

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

7шт.

13

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

2шт.

14

8500210

CLAMP

1шт.

17

8500226

BRAKE LINE

Front Axle Brake

1шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

20

701-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. 21

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

22

701-919

BHD LOCK NUT,1" - 14

5/8; Incl. 23

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

24

8500479

FLEXIBLE HOSE

2017 mm (79 - 3/8 in); Front Axle Brake

1шт.

25

367489A1

BLOCK

1шт.

26

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. 27

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

28

700-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl. 29, 30

2шт.

29

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

30

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

31

8500480

FLEXIBLE HOSE

453 mm (17 13/16 in); Front Axle Jump

1шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

33

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

M30 x 75; 10,9

4шт.
