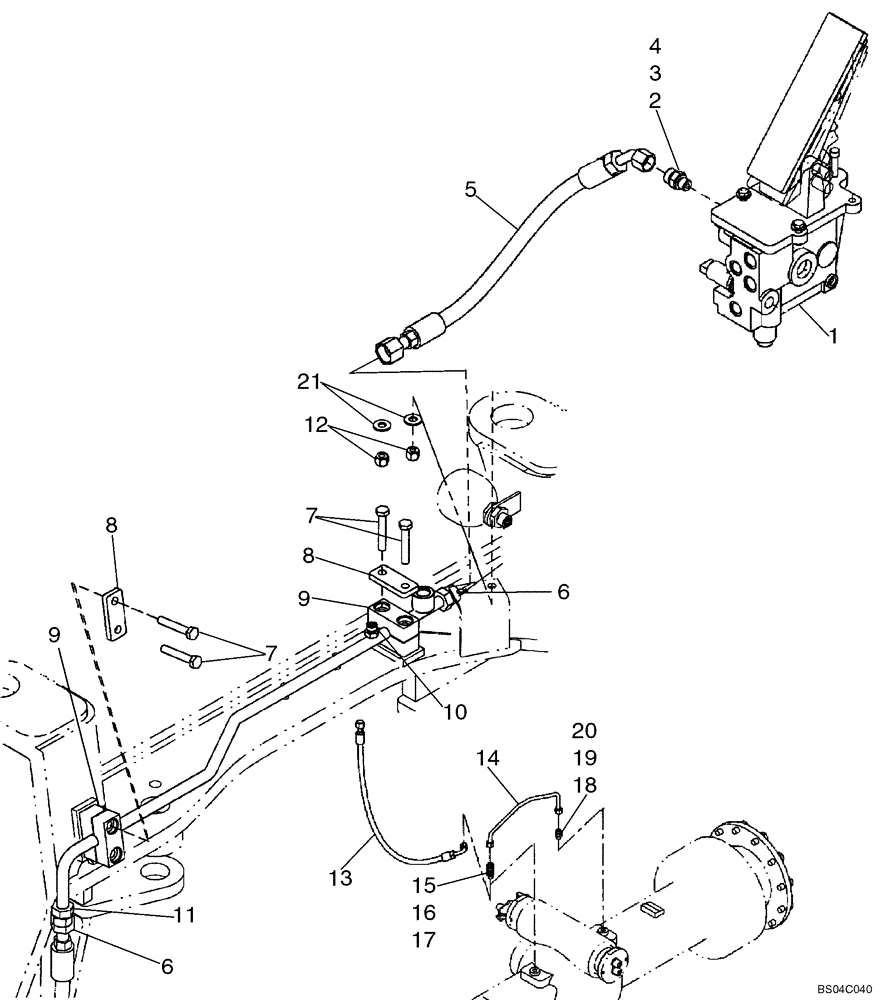

Запчасти Case 721D (07-06) - HYDRAULICS - BRAKE, MAIN - REAR AXLE (07) - BRAKES

REF

INSTRUCTION

MAIN BRAKE VALVE TO REAR AXLE

1шт.

1

8603087

BRAKE VALVE

Main, See Figure 07-08

1шт.

1

8603087R

REMAN-HYD VALVE

Main, See Figure 07-08

1шт.

1

8603087C

CORE-VALVE HYD

Core Return Number

1шт.

2

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 3, 4

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

4

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5

8500201

FLEXIBLE HOSE

522 mm (20 - 9/16 in); Rear Axle

1шт.

6

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

7

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

M10 x 65; 10.9

4шт.

8

367658A1

PLATE

2шт.

9

8500210

CLAMP

2шт.

10

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

8500224

BRAKE LINE

Rear Axle Bake

1шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

8500476

FLEXIBLE HOSE

944 mm (37 - 11/64 in); Rear Axle Brake

1шт.

14

8500474

BRAKE LINE

Rear Axle

1шт.

15

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 16, 17

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

2шт.

17

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

18

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 19, 20

1шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

20

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.
