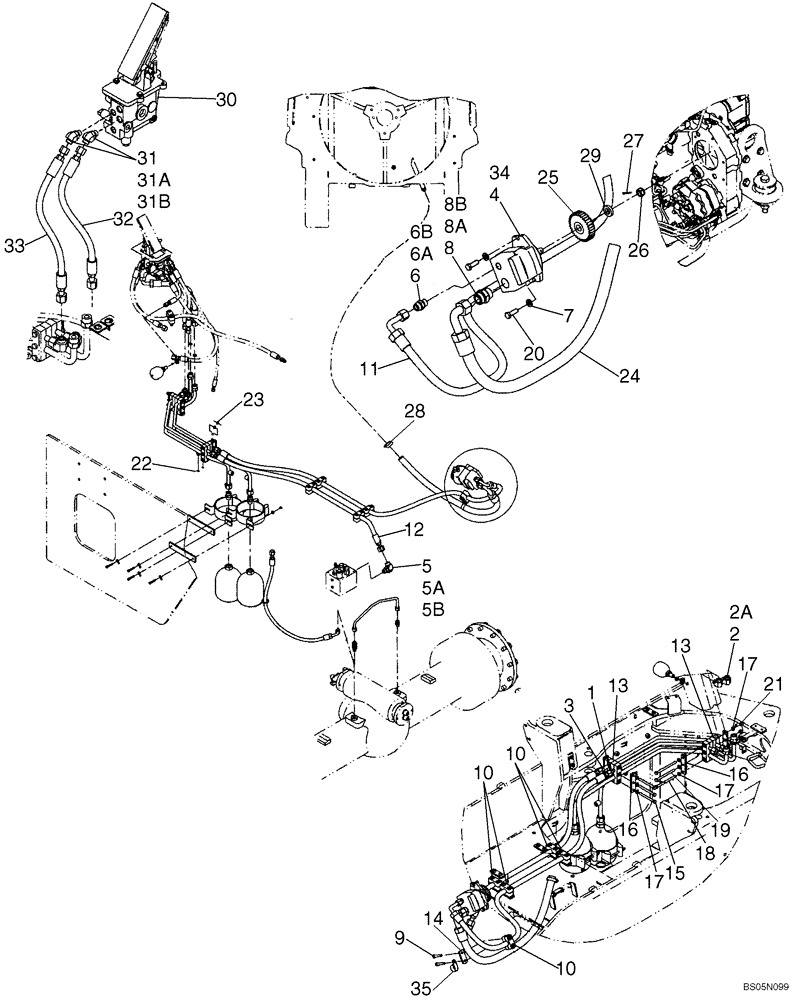

Запчасти Case 721D (07-05A) - HYDRAULICS - BRAKE, MAIN - RESERVOIR - PUMP - 87342166 BRAKE PUMP (07) - BRAKES

REF

INSTRUCTION

MAIN BRAKE VALVE TO RESERVOIR AND BRAKE PUMP

1шт.

REF

INSTRUCTION

USED WITH 87342166 BRAKE PUMP

1шт.

1

8500218

HYD TUBE,15.88 mm OD x 540, 250 mm L

Brake Supply

1шт.

2

701-340

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. 2A

2шт.

2a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

3

8500220

HYD TUBE,15.88 mm OD x 608, 313 mm L

Fan Supply

1шт.

4

87342166

HYDRAULIC PUMP,23.6 CC

Brake and Fan

1шт.

87342166R

REMAN-HYD PUMP

721D (1/03-)

1шт.

87342166C

CORE-INJECTION PUMP

Return Number

1шт.

87364063

SEAL KIT

Used with 87342166 Pump

1шт.

5

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

ADJ 20mm ORFS x M27 ORB; Incl. 5A, 5B

2шт.

5a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

5b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

6

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

STR THD 16mm ORFS x M22 ORB; Incl. 6A, 6B

1шт.

6a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

8

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 8A, 8B

1шт.

8a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

8b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

9

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

If Used

2шт.

10

367489A1

BLOCK

If Used

6шт.

11

8602673

FLEXIBLE HOSE

2394 mm ( 94-1/4 in ); Brake Pump Pressure; If Used

1шт.

11

87384303

FLEXIBLE HOSE

2439 mm ( 96 in ); Brake Pump Pressure; If Used

1шт.

12

8500174

FLEXIBLE HOSE

1407 mm (55 - 7/16 in); Fan Supply

1шт.

13

8500478

BLOCK

4шт.

14

367658A1

PLATE

3шт.

15

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

3шт.

16

8500555

PLATE

3шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

9шт.

18

827-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 10.9

2шт.

19

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

20

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

22

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

2шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

24

84172203

HYDRAULIC HOSE

1216 mm ( 48 in ); Brake Pump Suction; If Used

1шт.

24

87384302

FLEXIBLE HOSE

1101 mm ( 43-1/3 in ); Brake Pump Suction; If Used

1шт.

25

87389871

GEAR

Accessory Driver; Replaces 87373110

1шт.

26

425-1310

SLOTTED NUT,5/8"-18, G5

If Used

1шт.

27

432-616

COTTER PIN,3/32" x 1"

If Used

1шт.

27

733-3232

COTTER PIN,M3.2 x 32

If Used

1шт.

28

353036A1

HOSE CLAMP,32mm - 54mm

If Used

1шт.

29

87373112

WASHER,20mm ID x 36mm OD x 7.5mm Thk

Gear Mount

1шт.

30

8603087

BRAKE VALVE

Main, See Figure 07-08

1шт.

30

8603087R

REMAN-HYD VALVE

Main, See Figure 07-08

1шт.

30

8603087C

CORE-VALVE HYD

Core Return Number

1шт.

31

700-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 31A, 31B

2шт.

31a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

31b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

32

8500203

FLEXIBLE HOSE

527 mm (20 - 3/4 in); Brake Valve Discharge

1шт.

33

8500204

FLEXIBLE HOSE

567 mm (22 - 5/16 in); Brake Pump Discharge

1шт.

34

REF

INSTRUCTION

Use Gasket Supplied with Engine

1шт.

35

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.
