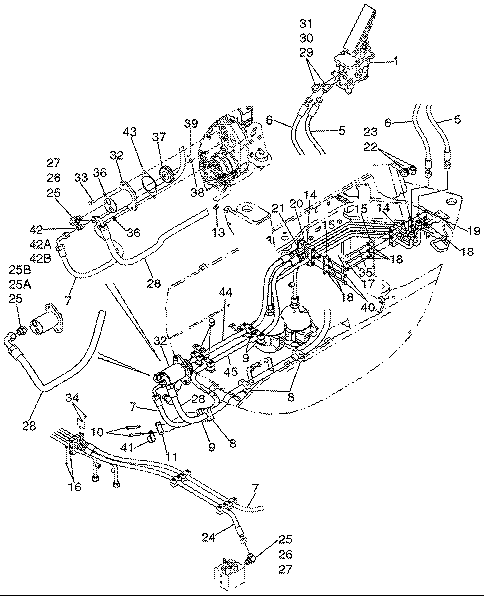

Запчасти Case 721D (07-05) - HYDRAULICS - BRAKE, MAIN - RESERVOIR - PUMP - 8602588 BRAKE PUMP (07) - BRAKES

REF

INSTRUCTION

MAIN BRAKE VALVE TO RESERVOIR AND BRAKE PUMP

1шт.

REF

INSTRUCTION

USED WITH 8602588 BRAKE PUMP

1шт.

1

8603087

BRAKE VALVE

Main, See Figure 07-08

1шт.

1

8603087R

REMAN-HYD VALVE

Main, See Figure 07-08

1шт.

1

8603087C

CORE-VALVE HYD

Core Return Number

1шт.

5

8500203

FLEXIBLE HOSE

527 mm (20 - 3/4 in); Brake Valve Discharge

1шт.

6

8500204

FLEXIBLE HOSE

567 mm (22 - 5/16 in); Brake Pump Discharge

1шт.

7

8602673

FLEXIBLE HOSE

2394 mm ( 94-1/4 in ); Brake Pump Pressure

1шт.

8

8606002

CLAMP

If Used

3шт.

9

367489A1

BLOCK

If Used

5шт.

10

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

If used

2шт.

10

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

If Used

2шт.

11

367658A1

PLATE

1шт.

13

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

If Used

1шт.

13

353036A1

HOSE CLAMP,32mm - 54mm

If Used

1шт.

14

8500478

BLOCK

4шт.

15

8500555

PLATE

3шт.

16

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/8 ID x 1/16; Face Seal

2шт.

17

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

9шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

20

8500218

HYD TUBE,15.88 mm OD x 540, 250 mm L

Brake Supply

1шт.

21

8500220

HYD TUBE,15.88 mm OD x 608, 313 mm L

Fan Supply

1шт.

22

701-340

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. 23

2шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

24

8500174

FLEXIBLE HOSE

1407 mm (55 - 7/16 in); Fan Supply

1шт.

25

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 26, 27; If used

2шт.

26

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

27

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

25

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 25A, 25B; If Used

1шт.

25a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

25b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

28

8602672

FLEXIBLE HOSE

2053 mm ( 80 13/16 in ); Brake Pump Suction; Used with 25, 26, 27

1шт.

28

84172203

HYDRAULIC HOSE

1216 mmm ( 48 in ); Brake Pump Suction; Used with 25, 25A, 25B

1шт.

29

700-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 10A, 10B

2шт.

30

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

32

8602588

PUMP

Incl. Seal Kit

1шт.

87350508

SEAL KIT

Used with 8602588 Pump

1шт.

33

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

34

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

35

827-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 10.9

2шт.

36

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

37

86985892

GEAR

1шт.

38

425-138

SLOTTED NUT,1/2"-20, G8

If Used

1шт.

38

425-1310

SLOTTED NUT,5/8"-18, G5

If Used

1шт.

39

432-616

COTTER PIN,3/32" x 1"

If Used

1шт.

39

733-3232

COTTER PIN,M3.2 x 32

If Used

1шт.

40

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

3шт.

41

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

42

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 42A, 42B

1шт.

42a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

42b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

43

REF

INSTRUCTION

Use Gasket Supplied with Engine

1шт.

44

87384303

FLEXIBLE HOSE

1шт.

45

87384302

FLEXIBLE HOSE

1шт.
