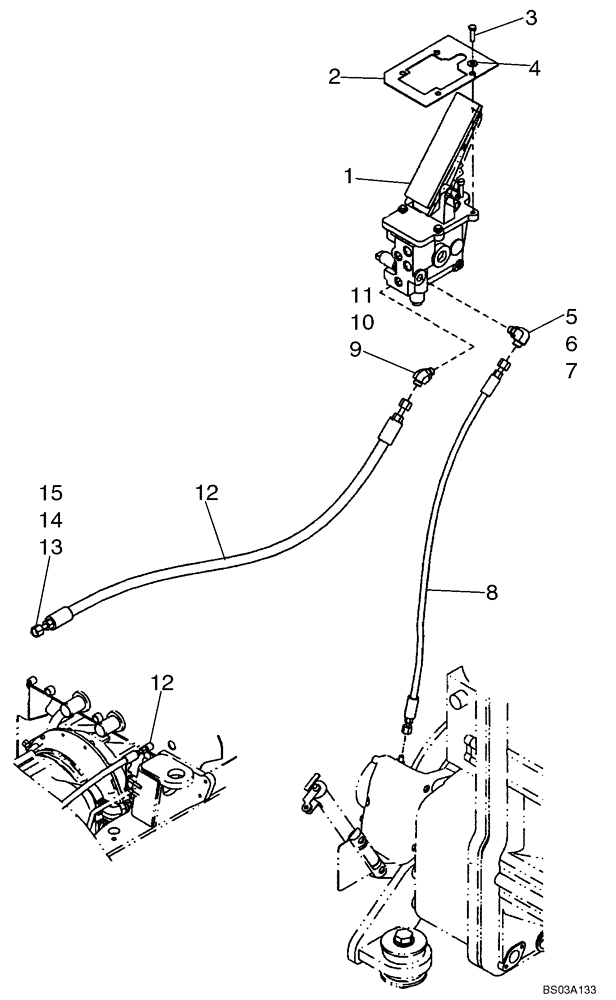

Запчасти Case 721D (07-03) - HYDRAULICS - BRAKE, MAIN - RESERVOIR - PARKING BRAKE (07) - BRAKES

REF

INSTRUCTION

MAIN BRAKE VALVE TO RESERVOIR AND PARKING BRAKE

1шт.

1

8603087

BRAKE VALVE

Main, See Figure 07-08

1шт.

1

8603087R

REMAN-HYD VALVE

Main, See Figure 07-08

1шт.

1

8603087C

CORE-VALVE HYD

Core Return Number

1шт.

2

414369A1

PLATE

1шт.

3

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

5

700-368

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 6, 7

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

7

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

8

8500199

FLEXIBLE HOSE

900 mm (35 7/16 in); Parking Brake

1шт.

8

87306914

FLEXIBLE HOSE

960mm (37-3/4in); Parking Brake; Replaces 8500199

1шт.

9

700-374

45 ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 10, 11

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

11

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

12

8500200

FLEXIBLE HOSE

1144 mm (45 in); Reservoir

1шт.

13

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 14, 15

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

15

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
