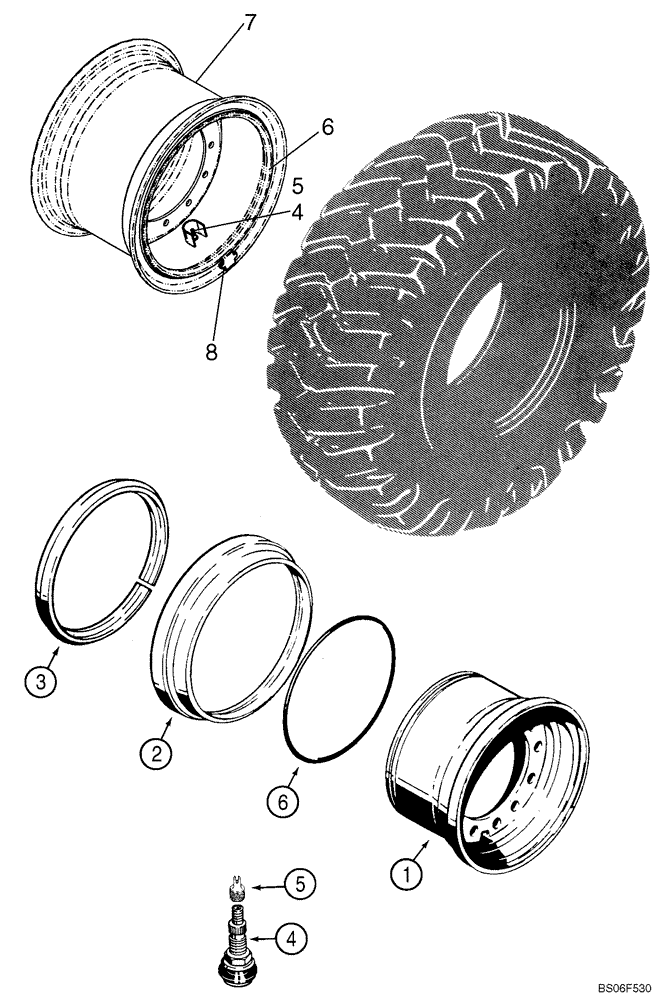

Запчасти Case 721D (06-37) - WHEELS (06) - POWER TRAIN

REF

INSTRUCTION

FOR 20.5 X 25 TIRES - THREE PIECE WHEEL

1шт.

8500796

WHEEL ASSY

Incl. 1-3, 6; If Used; 2030 Track

4шт.

8500800

WHEEL ASSY

25 x 17 1914 Track; Italy Only; Incl. 1-3, 6

4шт.

1

NSS

NOT SOLD SEPARAT

Rim; Wheel

1шт.

2

103185A1

RING

Side

1шт.

3

A19100

LOCKING RING

Locking

1шт.

4

A20058

VALVE STEM

Incl. 5

4шт.

5

NSS

NOT SOLD SEPARAT

Cap

4шт.

6

A16425

O-RING,10.29mm Thk x 573.02mm ID, 65 Duro

8шт.

REF

INSTRUCTION

For 17 x 25

1шт.

87364633

WHEEL ASSY

Incl. 7, 8; Used with Ref. 4-6; If used

4шт.

7

NSS

NOT SOLD SEPARAT

Rim, Wheel

1шт.

8

87551851

KEY

Key

1шт.
