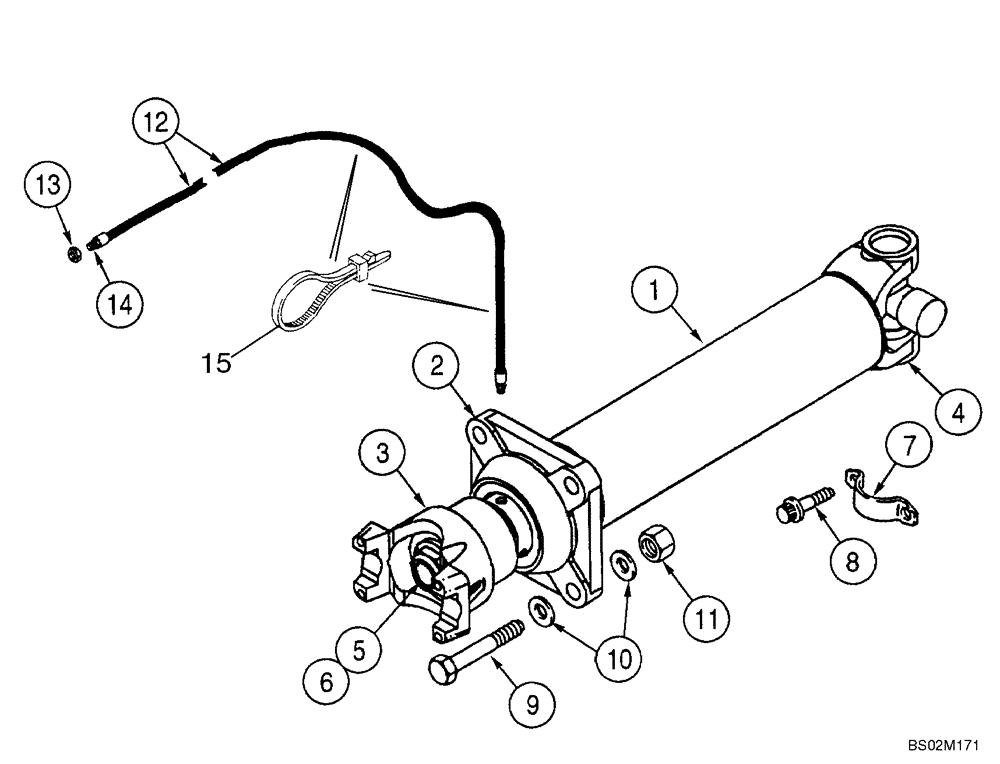

Запчасти Case 721D (06-35) - DRIVE SHAFT, FRONT - BEARING, SUPPORT AND LUBE LINE (06) - POWER TRAIN

1

8602354

DRIVE SHAFT

Front; Incl. 2 - 6; If Used

1шт.

1

87314317

DRIVE SHAFT

Front; Incl 3-6 Plus Bearing 87314314 with Set Screw to Allow Bearing To Slide Freely On Driveshaft; Not Illustrated; If Used

1шт.

2

8604398

BEARING CARRIER

Carrier

1шт.

2

87314314

BEARING CARRIER,49.213 mm ID x 60.6 mm

Carrier; Used with 87314317 Shaft; Not Illustrated; If Used

1шт.

3

8604674

YOKE

Drive Shaft to Center Bearing

1шт.

4

8604675

BEARING ASSY

Spider

1шт.

5

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

6

8604270

LOCK NUT

1шт.

7

L116943

SECURING STRAP

Bearing

2шт.

87539949

KIT

KIT, For Service order in place of L116943

1шт.

8

19-6247

BOLT,3/8" - 24 x 0.75", Grade 8

3/8 NF x 3/4;8

4шт.

9

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

12

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (41 in); Incl. 13, 13A

1шт.

13

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

13a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

14

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.
