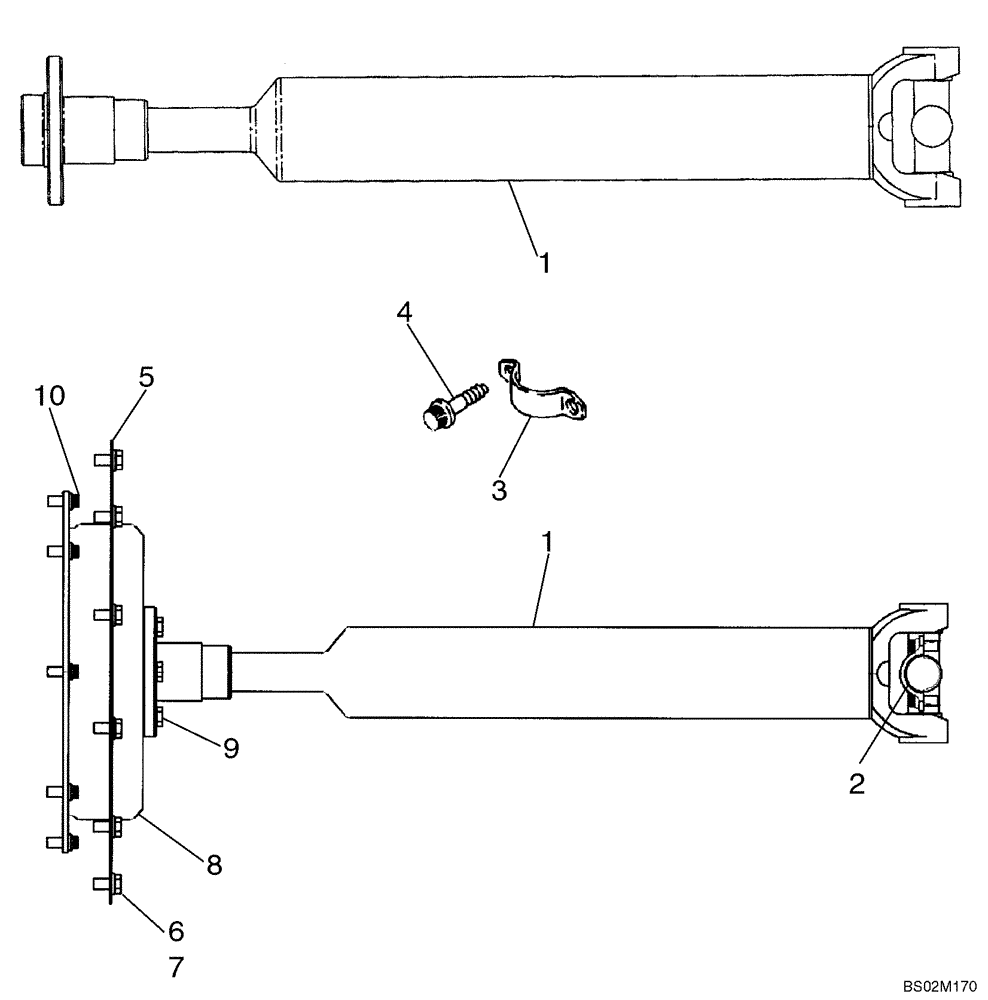

Запчасти Case 721D (06-34) - DRIVE SHAFT (06) - POWER TRAIN

1

87436140

DRIVE SHAFT

Engine; Incl. 2

1шт.

2

8604675

BEARING ASSY

Spider

1шт.

3

L116943

SECURING STRAP

Bearing

2шт.

87539949

KIT

KIT, For Service order in place of L116943

1шт.

4

19-6247

BOLT,3/8" - 24 x 0.75", Grade 8

3/8; 8

4шт.

5

8500188

COVER

Flywheel

1шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

12шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.

8

8501111

COUPLING FLANGE

1шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

10

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

8шт.
