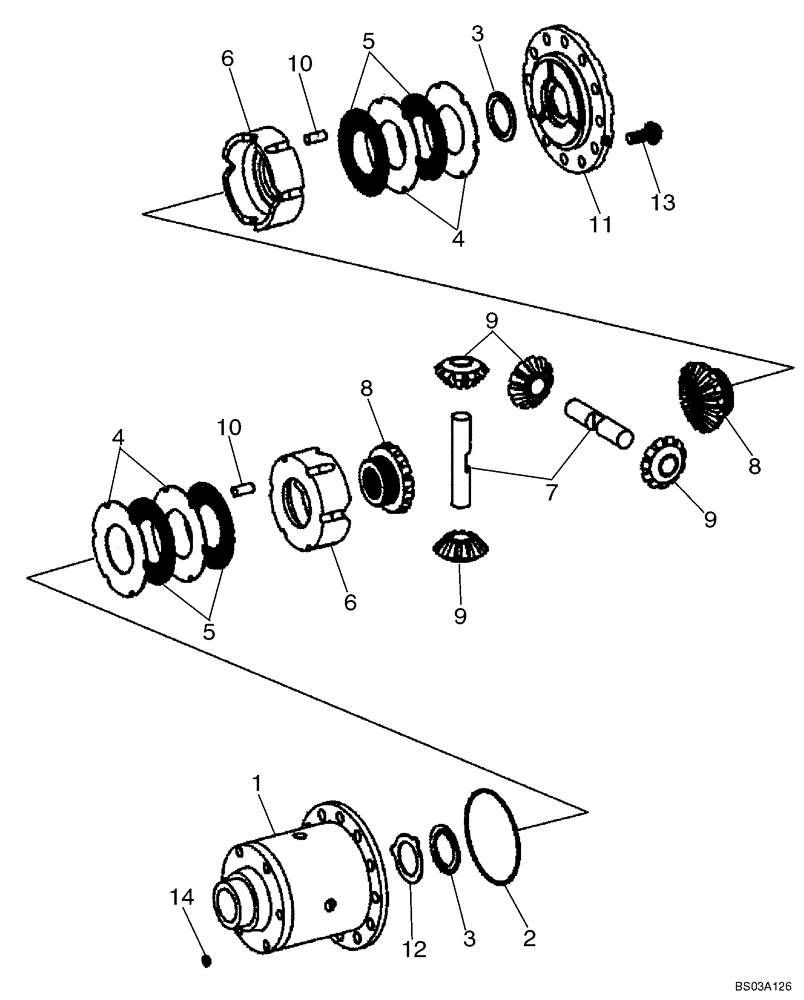

Запчасти Case 721D (06-31) - AXLE, REAR - DIFFERENTIAL (06) - POWER TRAIN

8602380

REAR AXLE

REAR, Limited Slip; Incl. Figure(s) 06-28 - 06-32; New Wheel End Assembly S/N 431 997 & After

1шт.

87361214R

REMAN-REAR AXLE

721D S/N 431 997 & After (1/03-), Reman For New P/N: 8602380

1шт.

87361214C

CORE-REAR AXLE

Return Number

1шт.

87361214

REAR AXLE

Limited Slip; Incl. Figure(s) 06-28 - 06-32; Oil Filled; Components Same As 8602380 Except Wheel End Assembly

1шт.

87361214R

REMAN-REAR AXLE

721D (1/03-)

1шт.

87361214C

CORE-REAR AXLE

Return Number

1шт.

8603825

DIFFERENTIAL ASSY

Limited Slip; Incl. 1 - 15; Also Includes Figure 06-32

1шт.

8603546

AXLE DIFFERENTIAL

Incl. 1 - 14

1шт.

1

8603545

HOUSING

1шт.

2

8603250

SNAP RING

1шт.

3

8603251

THRUST WASHER

2шт.

4

8603277

CLUTCH PLATE

2.2 mm

1шт.

4

8603278

CLUTCH PLATE,Steel

2.3 mm

1шт.

4

8603279

CLUTCH PLATE

2.4 mm

1шт.

4

8603280

CLUTCH PLATE

2.5 mm

1шт.

5

8603272

DISC

4шт.

6

8603252

SNAP RING

2шт.

7

8603253

SHAFT

2шт.

8

8603267

GEAR

2шт.

9

8603254

PINION

4шт.

10

8603255

PIN

12шт.

11

8603548

COVER

1шт.

12

8603282

THRUST WASHER

1шт.

13

8603268

BOLT,Lock

12шт.

14

8603271

SEAL

6шт.
