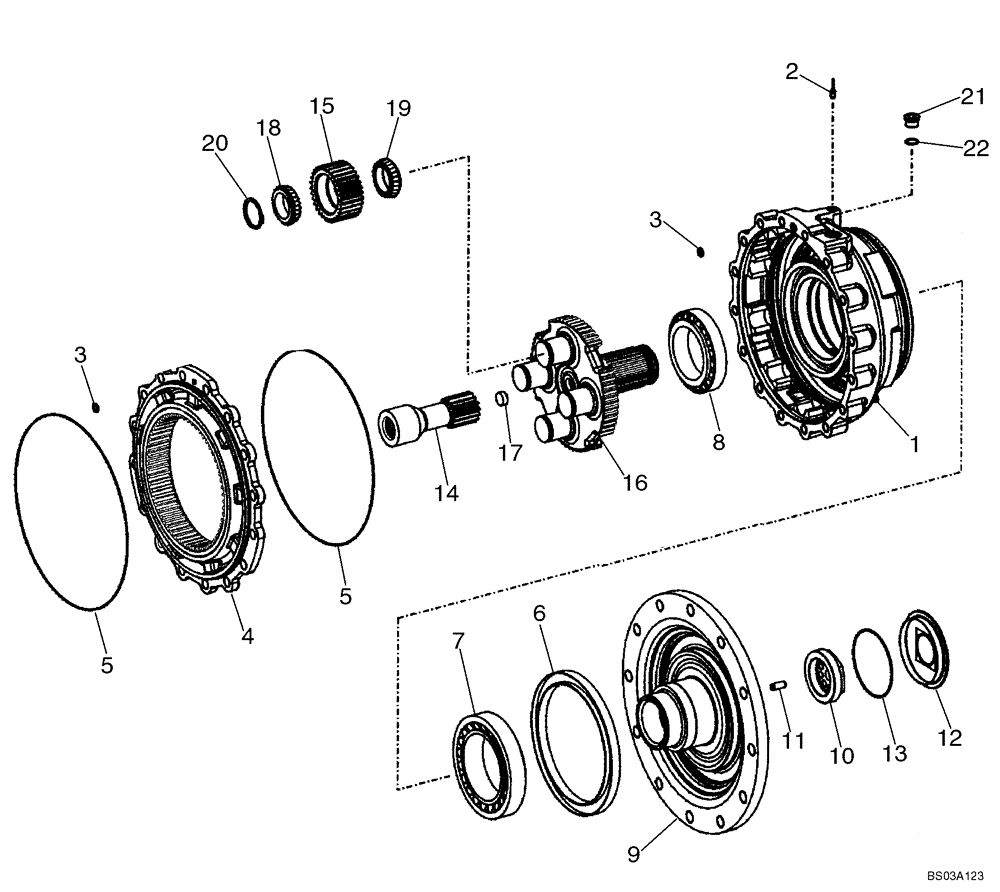

Запчасти Case 721D (06-29) - AXLE, REAR - HUB, PLANETARY (06) - POWER TRAIN

8602380

REAR AXLE

REAR, Limited Slip; Incl. Figure(s) 06-28 - 06-32; New Wheel End Assembly S/N 431 997 & After

1шт.

87361214R

REMAN-REAR AXLE

721D S/N 431 997 & After (1/03-), Reman For New P/N: 8602380

1шт.

87361214C

CORE-REAR AXLE

Return Number

1шт.

87361214

REAR AXLE

Limited Slip; Incl. Figure(s) 06-28 - 06-32; Oil Filled; Components Same As 8602380 Except Wheel End Assembly

1шт.

87361214R

REMAN-REAR AXLE

721D (1/03-)

1шт.

87361214C

CORE-REAR AXLE

Return Number

1шт.

8603698

FINAL DRIVE

FINAL REDUCTION GEARBOX Incl. 1 - 23; Also Includes Figure 06-30; Axle S/N 431996 & Before

1шт.

8605591

REMAN-WHEEL END ASSY

REMANUFACTURED AXLE/FINAL REDUCTION GEARBOX - NA Only

1шт.

8605592

CORE-WHEEL END ASSY

Return Number, AXLE/FINAL REDUCTION GEARBOX - NA Only

1шт.

87441324

FINAL DRIVE

FINAL REDUCTION GEARBOX Gear Reduction Unit; Incl. 1 - 23; Also Includes Figure 06-30; Axle S/N 431997 & After

1шт.

87361216

FINAL DRIVE

FINAL REDUCTION GEARBOX Replaces 87441324

1шт.

87363354

REMAN-WHEEL END ASSY

REMANUFACTURED AXLE, NA Only

1шт.

87363352

CORE-WHEEL END ASSY

Return Number, AXLE, NA Only

1шт.

1

87437916

HOUSING

Replaces 8603557

1шт.

2

8603558

PLUG

Incl. 3

1шт.

3

8603559

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

2шт.

4

8603560

RING GEAR,Planetary Ring

1шт.

5

8603561

O-RING

2шт.

6

84150634

SEAL

SEALRING Replaces 8603562

1шт.

7

8603563

TAPERED BEARING

1шт.

8

8603564

TAPERED BEARING

1шт.

9

8603675

FLANGE

Output

1шт.

10

8603565

NUT

1шт.

11

8603566

COTTER PIN

1шт.

12

8603567

COVER

1шт.

13

8603527

O-RING

1шт.

14

8603568

GEAR

Shaft

1шт.

15

8603569

GEAR

Planetary

4шт.

15

87358699

GEAR

PLANET, Replaces 8603569, Also Order 87358702, 84219769, And 87358698

4шт.

16

87437907

CARRIER

Planetary; Replaces 8603570

1шт.

16

87358702

PLANET CARRIER

PLANET, Replaces 87437907

1шт.

17

8603571

PLUG

Stop

1шт.

18

8603572

ROLLER BEARING

Inner

4шт.

19

8603573

ROLLER BEARING

Inner

4шт.

19

84219769

BEARING, ROLLER, CYL

PLANET, Replaces 8603572/8603573

8шт.

20

8603574

RETAINER

4шт.

20

87358698

SNAP RING

PLANET, Replaces 8603574

4шт.

21

8603575

PLUG

Incl. 22

1шт.

22

8603208

O-RING,2mm Thk x 21mm ID

1шт.

23

8603556

SHIM

If Used; Not Illustrated

1шт.
