Запчасти Case 721D (02-06) - COOLING SYSTEM - MOTOR, DRIVE (02) - ENGINE

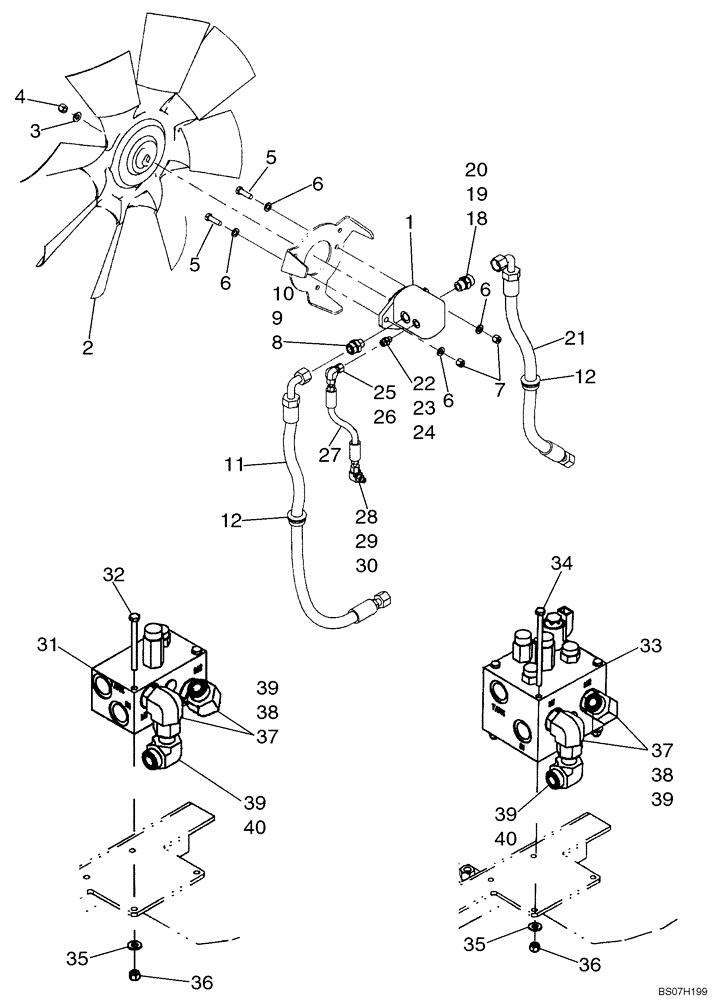

Схема запчастей Case 721D - (02-06) - COOLING SYSTEM - MOTOR, DRIVE (02) - ENGINE
8
2
10
5
6
23
35
34
29
9
36
30
38
39
20
4
26
6
27
19
40
18
21
39
38
1
25
24
28
5
33
32
35
6
37
37
7
22
31
39
3
11
36
39
40
6
12
12

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

REVERSIBLE FAN DRIVE

1шт.

1

8500105

HYDRAULIC MOTOR,GEAR, 23 CC

Reversible Fan; Incl. 1A

1шт.

8500105R

REMAN-HYD MOTOR

721D (1/03-)

1шт.

8500105C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1a

86991683

SEAL KIT

Seal; Not Illustrated

1шт.

2

8500471

FAN

1шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

(M13.5 x 27 x 3.4)

1шт.

4

232-2448

NUT,1/2"-20, GC

1шт.

5

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

8

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl. 9, 10

1шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

10

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

11

8605293

FLEXIBLE HOSE

1140 mm; Fan Forward

1шт.

12

8500186

GROMMET

2шт.

18

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 19, 20

1шт.

19

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

20

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

21

8605292

FLEXIBLE HOSE,19.05mm ID x 880mm L, SAE 100R17

880 mm; Fan Reverse

1шт.

22

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 23, 24

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

24

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

25

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 26

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

27

8500183

FLEXIBLE HOSE

309 mm; Drain

1шт.

28

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 29, 30

1шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

30

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

REF

INSTRUCTION

Fan Relief Valve - If Used

1шт.

31

8500562

HYDRAULIC VALVE

Fan Relief; If Used; See Figure 08-09

1шт.

32

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

REF

INSTRUCTION

Fan Reverser Valve - If Used

1шт.

33

8500563

HYDRAULIC VALVE

Fan Reverser; If Used; See Figure 08-09

1шт.

34

814-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

4шт.

35

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2-4шт.

36

832-10408

NUT,M8 x 1.25, Cl 8.8

2-4шт.

37

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 38, 39

2шт.

38

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

39

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

40

701-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl. 39

1шт.
