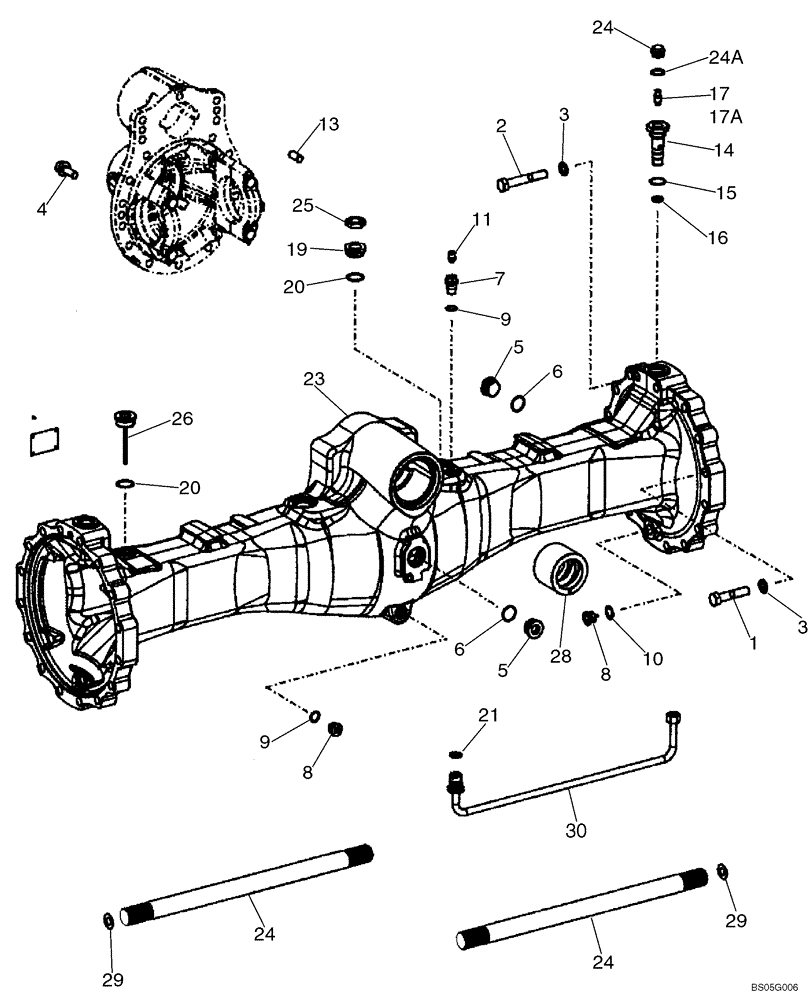

Запчасти Case 721D (06-28) - AXLE, REAR - HOUSING (06) - POWER TRAIN

8602380

REAR AXLE

REAR, Limited Slip; Incl. Figure(s) 06-28 - 06-32; New Wheel End Assembly S/N 431 997 & After

1шт.

87361214R

REMAN-REAR AXLE

721D S/N 431 997 & After (1/03-), Reman For New P/N: 8602380

1шт.

87361214C

CORE-REAR AXLE

Return Number

1шт.

87361214

REAR AXLE

Limited Slip; Incl. Figure(s) 06-28 - 06-32; Oil Filled; Components Same As Except Wheel End Assembly

1шт.

87361214R

REMAN-REAR AXLE

721D (1/03-)

1шт.

87361214C

CORE-REAR AXLE

Return Number

1шт.

1

514-1107

BOLT,Hex, M18 x 1.5 x 85mm, Cl 10.9

28шт.

2

8603800

BOLT

M18 x 105

4шт.

3

8603202

WASHER

32шт.

4

8603206

BOLT

Differential to Axle Housing

15шт.

5

8603549

PLUG

Incl. 6

1шт.

6

8603727

O-RING,2.2mm Thk x 33mm ID

1шт.

7

8603256

PLUG

Incl. 9; If Used

1шт.

8

8603550

PLUG

Incl. 9

3шт.

9

8603208

O-RING,2mm Thk x 21mm ID

3шт.

10

8603200

SEALING RING

2шт.

11

8603201

BREATHER

1шт.

13

8603695

DOWEL

3шт.

14

8603551

FITTING

Incl. 15; Bleeder

2шт.

15

8603727

O-RING,2.2mm Thk x 33mm ID

2шт.

16

8603552

GASKET

Ring; Bleeder Fitting

2шт.

17

3222214R1

VALVE

Breather; Incl. 17A

2шт.

17a

NSS

NOT SOLD SEPARAT

Dust Cap

2шт.

19

8603553

UNION

2шт.

20

8603207

O-RING,2.5mm Thk x 38mm ID

Plug; Incl. 21

2шт.

21

8603725

O-RING

3шт.

23

8603828

HOUSING

1шт.

24

8604977

HALF SHAFT

Stub

2шт.

25

8603554

TUBE NUT

M27

2шт.

26

8603694

DIPSTICK

Use (1) Ref 21

1шт.

28

8603827

BUSHING,72.2mm ID x 102mm OD x 75mm L

1шт.

29

8603730

SHIM,0.2mm Thk

2шт.

29

8603669

SHIM,0.4mm Thk

2шт.

29

8603731

SHIM,1mm Thk

2шт.

29

8603732

SHIM,1.5mm Thk

2шт.

30

87436735

BRAKE LINE

Internal Brake; Replaces 8603587

2шт.

31

8603210

PLUG

Incl. 32; If Used; Not Illustrated

2шт.

32

8603799

RING

1шт.
