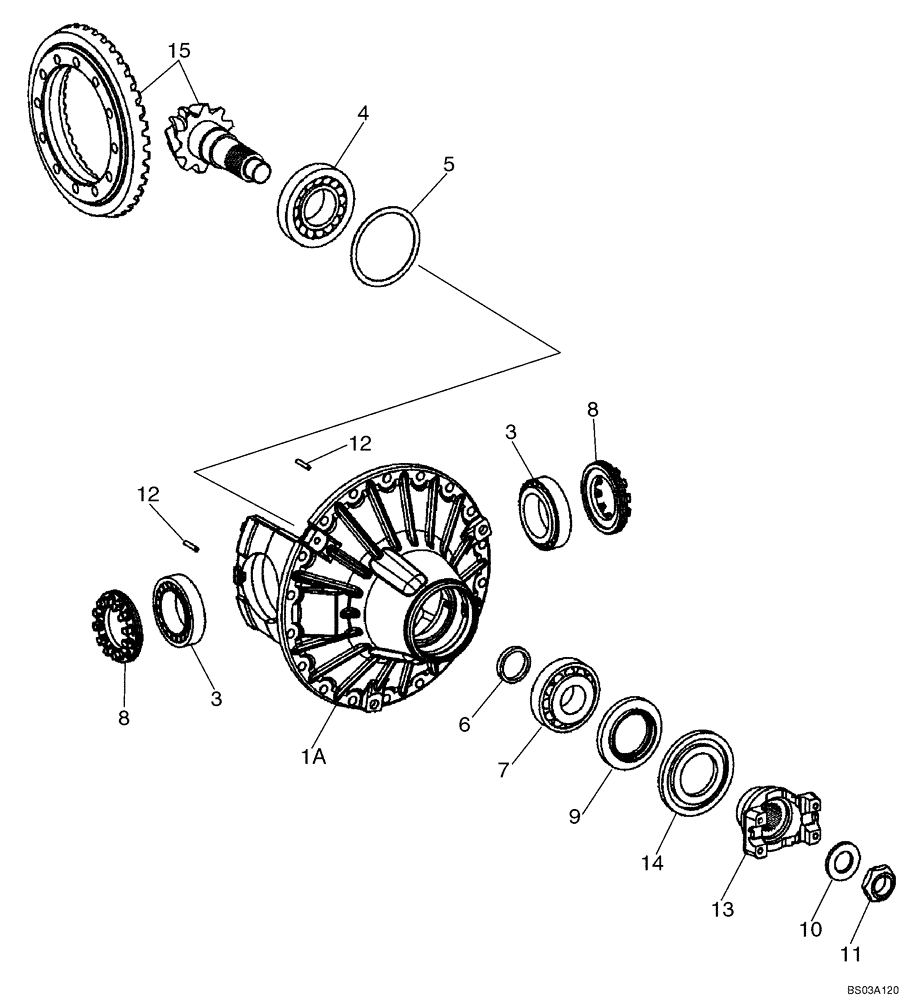

Запчасти Case 721D (06-27) - AXLE, FRONT - DIFFERENTIAL CARRIER (06) - POWER TRAIN

1

8602378

FRONT AXLE

Limited Slip; Incl. Figure(s) 06-23 - 06-27; New Wheel End Assembly S/N 432 021 & After

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721D CASE WHEEL LOADER (NORTH AMERICA), New Wheel End Assembly S/N 432 021 & After (1/03-), Reman for New PN 8602378

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

1

87313926

FRONT AXLE

Incl. Figure(s)06-23 - 06-27; Oil Filled; Components Same as 8500051

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721D CASE WHEEL LOADER (NORTH AMERICA) (1/03-), Reman for New PN 87313926

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

1

87361212

FRONT AXLE

Incl. Figure(s)06-23 - 06-27; Oil Filled; Components Same as 87313926 Except Wheel End Assembly

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721D CASE WHEEL LOADER (NORTH AMERICA) (1/03-)

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

8603591

CARRIER

Carrier Assy; Incl. 1A - 15; Also Includes Parts on Figure 06-26

1шт.

8605599

REMAN-AXLE DIF w/LTD

REMAN-AXLE DIFF, w/LTD SLIP REMANUFACTURED CARRIER/AXLE - NA Only

1шт.

8605600

CORE-AXLE DIFF w/LTD

CORE-AXLE DIFF, w/LTD SLIP Return Number, CARRIER/AXLE - NA Only

1шт.

1a

8605615

HOUSING

Pinion and Differential

1шт.

2

8603225

ROLLER BEARING,70mm ID x 125mm OD x 41mm W

RH; Not Illustrated; If Used

1шт.

3

8603226

ROLLER BEARING

LH

2шт.

4

8603227

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

Front

1шт.

5

8603228

WASHER,0.7mm Thk

1шт.

5

8603229

SHIM,0.8mm Thk

1шт.

5

8603230

SHIM,0.9mm Thk

1шт.

5

8603231

SHIM,1mm Thk

1шт.

5

8603232

SHIM,1.1mm Thk

1шт.

5

8603233

SHIM,1.2mm Thk

1шт.

5

8603234

SHIM,1.3mm Thk

1шт.

5

8603235

SHIM,1.4mm Thk

1шт.

5

8603236

SHIM,1.5mm Thk

1шт.

5

8603237

SHIM,0.2mm Thk

1шт.

5

8603238

SHIM,0.1mm Thk

1шт.

6

8603239

SPACER,8.80 mm

8.8 mm

1шт.

6

8603789

SPACER,8.70 mm

8.7 mm

1шт.

6

8603794

SPACER,8.60mm

8.6 mm

1шт.

6

8603793

SPACER,8.50 mm

8.5 mm

1шт.

6

8603792

SPACER,8.40 mm

8.4 mm

1шт.

6

8603791

SPACER,8.30 mm

8.3 mm

1шт.

6

8603240

SPACER,8.90 mm

8.9 mm

1шт.

6

8603241

SPACER,9.10 mm

9.1 mm

1шт.

6

8603242

WASHER,9.20 mm

9.2 mm

1шт.

6

8603243

SPACER,9.30 mm

9.3 mm

1шт.

6

8603244

SPACER,9.40 mm

9.4 mm

1шт.

7

8603245

ROLLER BEARING,50.8mm ID x 82mm OD x 21.98mm W

Rear

1шт.

8

8603246

NUT

2шт.

9

8603247

SEAL,75mm ID x 125mm OD

1шт.

10

8603248

WASHER,36mm ID x 64.6mm OD x 5.8mm Thk

1шт.

11

8605616

NUT

Pinion And Differential Housing

1шт.

12

8603795

ROLL PIN,6mm OD x 36mm L, Slotted

8 x 45 mm

1шт.

13

8603266

FLANGE

Input

1шт.

14

8604975

SEAL PROTECTION

Pinion Dust

1шт.

15

8605618

GEAR SET

1шт.
