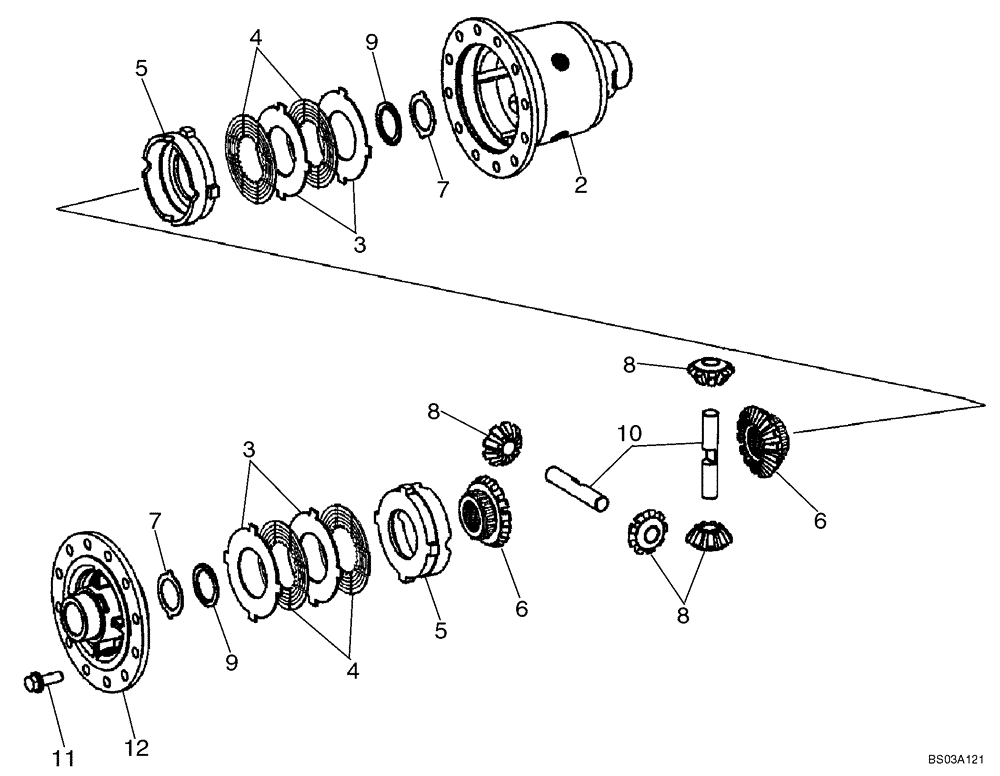

Запчасти Case 721D (06-26) - AXLE, FRONT - DIFFERENTIAL (06) - POWER TRAIN

1

8602378

FRONT AXLE

Limited Slip; Incl. Figure(s) 06-23 - 06-27; New Wheel End Assembly S/N 432 021 & After

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721D CASE WHEEL LOADER (NORTH AMERICA), New Wheel End Assembly S/N 432 021 & After (1/03-), Reman for New PN 8602378

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

1

87313926

FRONT AXLE

Incl. Figure(s) 06-23 - 06-27; Oil Filled; Components Same as 8500051

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721D CASE WHEEL LOADER (NORTH AMERICA) (1/03-), Reman for New PN 87313926

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

1

87361212

FRONT AXLE

Incl. Figure(s) 06-23 - 06-27; Oil Filled; Components Same as 87313926 Except Wheel End Assembly

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721D CASE WHEEL LOADER (NORTH AMERICA) (1/03-)

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

8603591

CARRIER

Incl. 1 - 13; Also Includes Figure 06-27

1шт.

8605599

REMAN-AXLE DIF w/LTD

REMAN-AXLE DIFF, w/LTD SLIP REMANUFACTURED CARRIER/AXLE - NA Only

1шт.

8605600

CORE-AXLE DIFF w/LTD

CORE-AXLE DIFF, w/LTD SLIP Return Number, CARRIER/AXLE - NA Only

1шт.

8603621

DIFFERENTIAL ASSY

Limited Slip; Incl. 2 - 13

1шт.

2

8605619

HOUSING

Limited Slip Differential

1шт.

3

8603592

CLUTCH PLATE

CLUTCH DISK 2.9 mm; Outer

1шт.

3

8603593

CLUTCH DISC

CLUTCH DISK 3.0 mm; Outer

1шт.

3

8603594

CLUTCH DISC

CLUTCH DISK 3.1 mm; Outer

1шт.

4

8603203

PLATE

Inner

4шт.

5

8603601

DIVIDER

2шт.

6

8603602

GEAR

Side

2шт.

7

8603597

SHIM

2шт.

8

87521434

DIFFERENTIAL GEAR

Pinion, Replaces 8603204

4шт.

9

8603596

WASHER

2шт.

10

8603600

SHAFT

2шт.

11

8603273

BOLT

12шт.

12

8603599

COVER

1шт.
