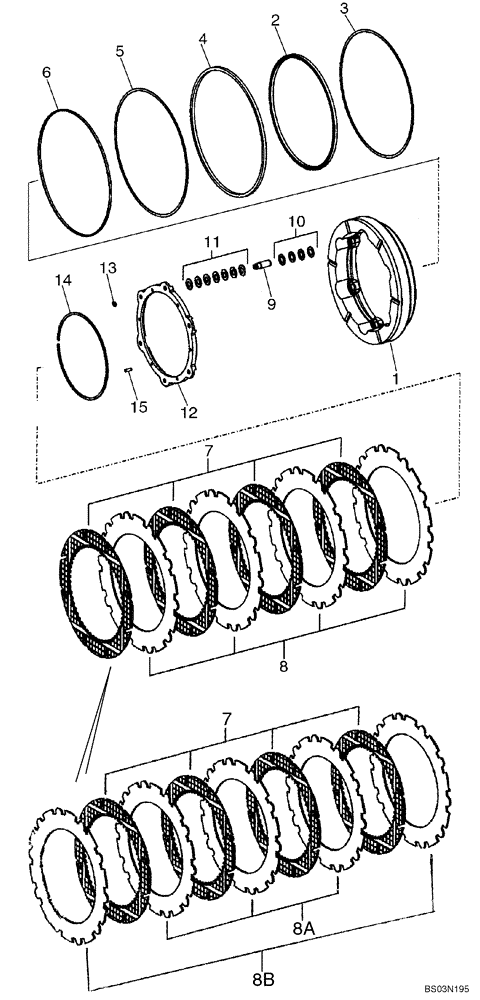

Запчасти Case 721D (06-25) - AXLE, FRONT - HUB, DISC BRAKES (06) - POWER TRAIN

1

8602378

FRONT AXLE

Limited Slip; Incl. Figure(s) 06-23 - 06-27; New Wheel End Assembly S/N 432 021 & After

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721D CASE WHEEL LOADER (NORTH AMERICA), New Wheel End Assembly S/N 432 021 & After (1/03-), Reman for New PN 8602378

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

1

87313926

FRONT AXLE

Incl. Figure(s)06-23 - 06-27; Oil Filled; Components Same as 8500051

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721D CASE WHEEL LOADER (NORTH AMERICA) (1/03-), Reman for New PN 87313926

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

1

87361212

FRONT AXLE

Incl. Figure(s) 06-23 - 06-27; Oil Filled; Components Same as 87313926 Except Wheel End Assembly

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721D CASE WHEEL LOADER (NORTH AMERICA) (1/03-)

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

8603697

FINAL DRIVE

FINAL REDUCTION GEARBOX Incl. 1 - 15; Also Includes Parts On Figure 06-24; Axle S/N 432020 & Before

1шт.

8605589

REMAN-WHEEL END ASSY

REMANUFACTURED AXLE/FINAL REDUCTION GEARBOX - NA Only

1шт.

8605590

CORE-WHEEL END ASSY

Return Number, AXLE/FINAL REDUCTION GEARBOX - NA Only

1шт.

87441323

FINAL DRIVE

FINAL REDUCTION GEARBOX Gear Reduction Unit; Incl. 1 - 15; Also Includes Parts on Figure 06-24; Axle S/N 432021 & After

1шт.

87361215

FINAL DRIVE

FINAL REDUCTION GEARBOX Replaces 87441323

1шт.

87361215R

REMAN-WHEEL END ASSY

REMAN FINAL REDUCTION GEARBOX Replaces 87441323

1шт.

87361215C

CORE-WHEEL END ASSY

RETURN NUMBER

1шт.

87363356

REMAN-WHEEL END ASSY

REMANUFACTURED AXLE - NA Only

1шт.

87363350

CORE-WHEEL END ASSY

Return Number, AXLE - NA Only

1шт.

1

8603166

PISTON

Brake

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8603577

RING

1шт.

4

8605315

SEAL

1шт.

5

8603579

RING

1шт.

6

8603580

SNAP RING

1шт.

87365252

REPAIR KIT

Brake Pack; Incl. Refs. 7, 8A, 8B

1шт.

7

8603581

BRAKE DISC

Inner

4шт.

7

87341835

BRAKE DISC

Replaces 8603581

4шт.

8

8603582

BRAKE PLATE

Outer; Used in (4) Plate Brake Assembly; If Used

4шт.

8a

8603582

BRAKE PLATE

Used with Ref 8B; Used in (5) Plate Brake Assembly; If Used

3шт.

8b

87441328

PLATE,2mm Thk

Used with Ref 8A; Used in (5) Plate Brake Assembly; If Used

2шт.

9

8603163

PIN

6шт.

10

8603583

SEAL

24шт.

11

8603584

BELLEVILLE WASHER

42шт.

12

8603162

SHIM

1шт.

13

8603788

SNAP RING

6шт.

14

8603585

SNAP RING

1шт.

15

8603796

ROLL PIN,6mm OD x 20mm L

6шт.
