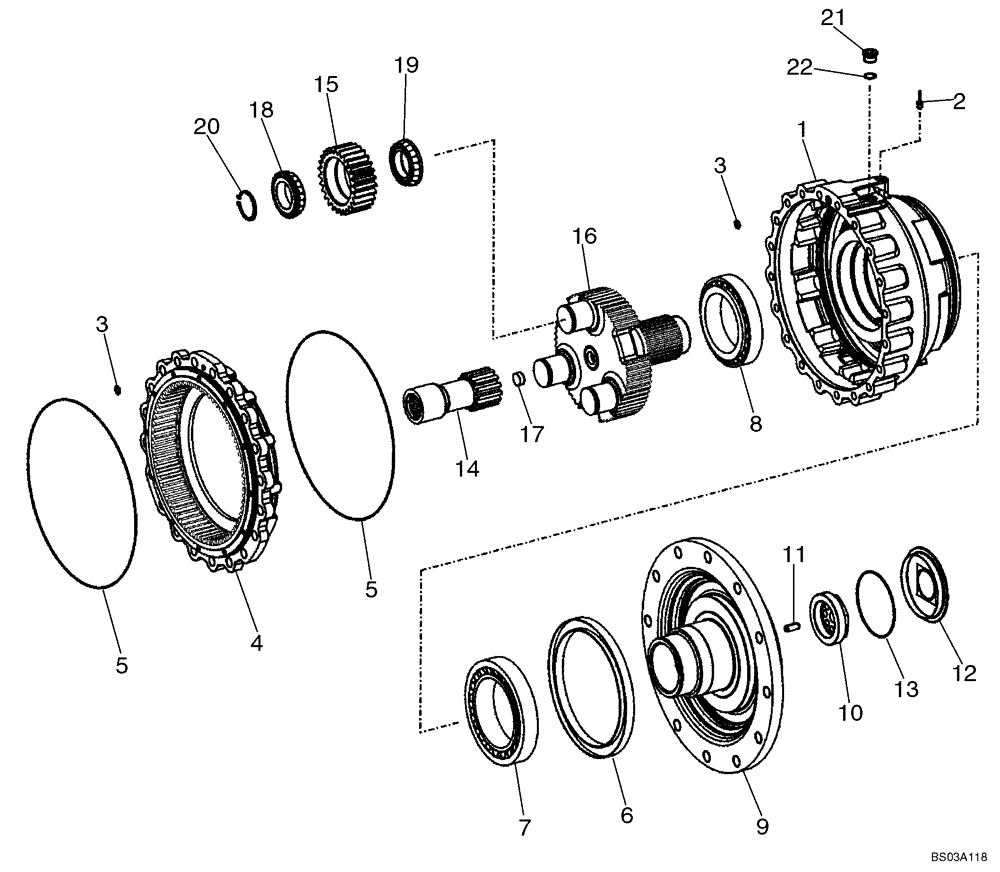

Запчасти Case 721D (06-24) - AXLE, FRONT - HUB, PLANETARY (06) - POWER TRAIN

1

8602378

FRONT AXLE

Limited Slip; Incl. Figure(s) 06-23 - 06-27; New Wheel End Assembly S/N 432 021 & After

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721D CASE WHEEL LOADER (NORTH AMERICA), New Wheel End Assembly S/N 432 021 & After (1/03-), Reman for New PN 8602378

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

1

87313926

FRONT AXLE

Incl. Figure(s)06-23 - 06-27; Oil Filled; Components Same As 8500051

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721D CASE WHEEL LOADER (NORTH AMERICA) (1/03-), Reman for New PN 87313926

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

1

87361212

FRONT AXLE

Incl. Figure(s) 06-23 - 06-27; Oil Filled; Components Same As 87313926 Except Wheel End Assembly

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721D CASE WHEEL LOADER (NORTH AMERICA) (1/03-)

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

87441323

FINAL DRIVE

FINAL REDUCTION GEARBOX GEAR REDUCTION UNIT; Incl. 1 - 23; Also Includes Parts On Figure 06-25; Axle S/N 432021 & After

1шт.

87361215

FINAL DRIVE

FINAL REDUCTION GEARBOX Replaces 87441323

1шт.

87361215R

REMAN-WHEEL END ASSY

REMAN FINAL REDUCTION GEARBOX Replaces 87441323

1шт.

87361215C

CORE-WHEEL END ASSY

Return Number

1шт.

87363356

REMAN-WHEEL END ASSY

REMANUFACTURED AXLE - NA Only

1шт.

87363350

CORE-WHEEL END ASSY

Return Number, AXLE - NA Only

1шт.

1

84149185

HOUSING

Replaces 8603609, 87437915 Housing

1шт.

2

8603558

PLUG

Incl. 3

1шт.

3

8603559

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

2шт.

4

8603610

GEAR

1шт.

5

8603561

O-RING

2шт.

6

84150634

SEAL

SEALRING Replaces 8603562

1шт.

7

8603611

TAPERED BEARING,140mm ID x 210mm OD x 45mm W

1шт.

8

8603612

ROLLER BEARING

1шт.

9

87432166

FLANGE

Output

1шт.

10

8603565

NUT

1шт.

11

8603566

COTTER PIN

1шт.

12

8603567

COVER

1шт.

13

8603527

O-RING

1шт.

14

8603614

GEAR

Shaft

1шт.

15

8603615

GEAR

Planetary

3шт.

16

87437909

PLANET CARRIER

Planetary; Replaces 8603616 Carrier

1шт.

17

8603571

PLUG

1шт.

18

8603617

ROLLER BEARING

Inner

3шт.

19

8603618

ROLLER BEARING

Inner

3шт.

20

8603790

RETAINER

3шт.

21

8603575

PLUG

Incl. 22

1шт.

22

8603208

O-RING,2mm Thk x 21mm ID

1шт.

23

8603608

SHIM KIT

Not Illustrated

1шт.
