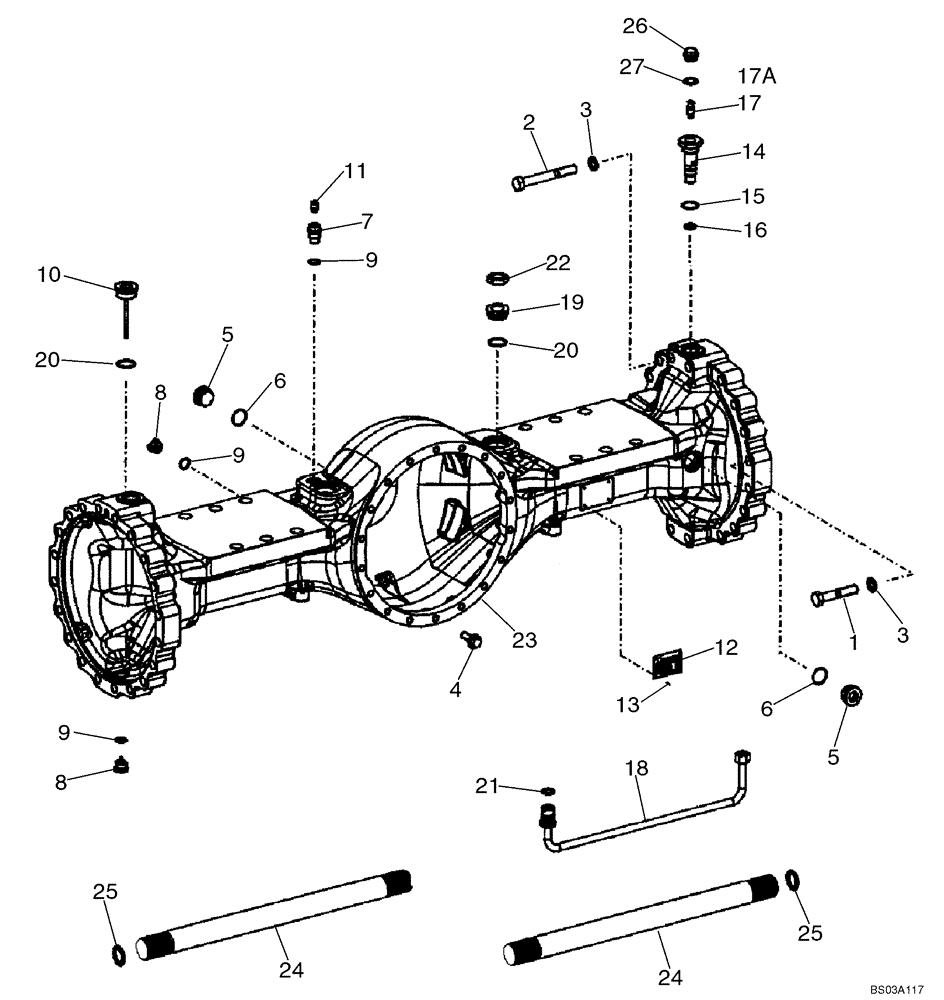

Запчасти Case 721D (06-23) - AXLE, FRONT - HOUSING (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
8602378
FRONT AXLE
Limited Slip; Incl. Figure(s) 06-23 - 06-27; New Wheel End Assembly S/N 432 021 & After
1шт.
1
87361212R
REMAN-AXLE DIFFERENT
721D CASE WHEEL LOADER (NORTH AMERICA), New Wheel End Assembly S/N 432 021 & After (1/03-), Reman for New PN 8602378
1шт.
1
87361212C
CORE-AXLE, MFD
Return Number
1шт.
1
87313926
FRONT AXLE
Incl. Figure(s) 06-23 - 06-27; Oil Filled; Components Same As 8500051
1шт.
1
87361212R
REMAN-AXLE DIFFERENT
721D CASE WHEEL LOADER (NORTH AMERICA) (1/03-), Reman for New PN 87313926
1шт.
1
87361212C
CORE-AXLE, MFD
Return Number
1шт.
1
87361212
FRONT AXLE
Incl. Figure(s) 06-23 - 06-27; Oil Filled; Components Same As 87313926 Except Wheel End Assembly
1шт.
1
87361212R
REMAN-AXLE DIFFERENT
721D CASE WHEEL LOADER (NORTH AMERICA) (1/03-)
1шт.
1
87361212C
CORE-AXLE, MFD
Return Number
1шт.
1
8603603
BOLT
M18 x 95
32шт.
2
8603604
BOLT
M18 x 140
8шт.
3
8603202
WASHER
Differential
40шт.
4
8603206
BOLT
Differential To Axle Housing
18шт.
5
8603549
PLUG
2шт.
6
8603727
O-RING,2.2mm Thk x 33mm ID
2шт.
7
8603256
PLUG
1шт.
8
8603550
PLUG
2шт.
9
8603208
O-RING,2mm Thk x 21mm ID
2шт.
10
8603694
DIPSTICK
Oil
1шт.
11
8603201
BREATHER
Valve
1шт.
12
8603200
SEALING RING
2шт.
13
8603207
O-RING,2.5mm Thk x 38mm ID
1шт.
14
8603551
FITTING
2шт.
15
8603727
O-RING,2.2mm Thk x 33mm ID
2шт.
16
8603552
GASKET
2шт.
17
3222214R1
VALVE
Breather; Incl. 17A
2шт.
17a
NSS
NOT SOLD SEPARAT
Dust Cap
2шт.
18
8603605
BRAKE LINE
Internal Brake Lining; No Longer Used; Replaced by 87436738
2шт.
18
87436738
BRAKE LINE
Replaces 8603605
2шт.
19
8603553
UNION
2шт.
20
8603207
O-RING,2.5mm Thk x 38mm ID
2шт.
21
8603725
O-RING
2шт.
22
8603554
TUBE NUT
Internal Brake Lining
2шт.
23
8603829
AXLE HOUSING
1шт.
24
8603607
HALF SHAFT
2шт.
25
8603608
SHIM KIT
If Used, Not Illustrated
2шт.
26
8603210
PLUG
2шт.
27
8603799
RING
2шт.
Выбрано товаров: 38
