(06-22) - AXLE, FRONT AND REAR - MOUNTING

Запчасти Case 721D (06-22) - AXLE, FRONT AND REAR - MOUNTING (06) - POWER TRAIN

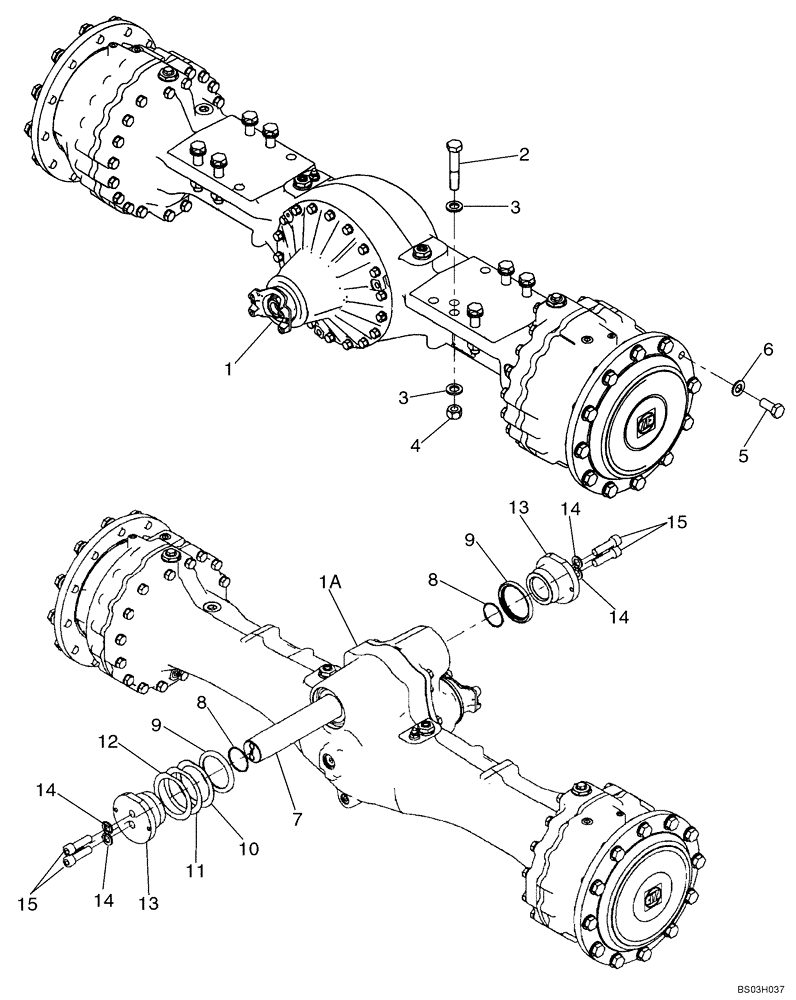

Схема запчастей Case 721D - (06-22) - AXLE, FRONT AND REAR - MOUNTING (06) - POWER TRAIN
1
11
13
14
9
8
5
14
3
8
10
7
6
15
9
1a
14
13
14
12
2
4
15
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8602378

FRONT AXLE

Limited Slip; Incl. Figure(s) 06-23 - 06-27; New Wheel End Assembly S/N 432 021 & After

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721D CASE WHEEL LOADER (NORTH AMERICA), New Wheel End Assembly S/N 432 021 & After (1/03-), Reman for New PN 8602378

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

87361214R

REMAN-REAR AXLE

721D S/N 431 997 & After (1/03-), Reman For New P/N: 8602380

1шт.

87361214C

CORE-REAR AXLE

Return Number

1шт.

1

87313926

FRONT AXLE

Incl. Figure(s) 06-23 - 06-27; Oil Filled; Components Same As 8500051

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721D CASE WHEEL LOADER (NORTH AMERICA) (1/03-), Reman for New PN 87313926

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

1

87361212

FRONT AXLE

Incl. Figure(s) 06-23 - 06-27; Oil Filled; Components Same As 87313926 Except Wheel End Assembly

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721D CASE WHEEL LOADER (NORTH AMERICA) (1/03-)

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

1a

8602380

REAR AXLE

Limited Slip; Incl. Figure(s) 06-28 - 32; New Wheel End Assembly S/N 431 997 & After

1шт.

1a

87361214

REAR AXLE

Limited Slip; Incl. Figure(s) 06-28 - 32; Oil Filled; Components Same As 8602380 Except Wheel End Assembly

1шт.

87361214R

REMAN-REAR AXLE

721D (1/03-)

1шт.

87361214C

CORE-REAR AXLE

Return Number

1шт.

2

827-24130

BOLT,Hex, M24 x 3 x 130mm, Cl 10.9

8шт.

3

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

16шт.

4

829-1424

NUT,M24, Cl 10

8шт.

5

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

24шт.

6

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

24шт.

7

87695940

PIN,71.94mm OD x 463mm L

Pivot; Replaces 87450044, 8500057

1шт.

8

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2шт.

9

87715379

OIL SEAL,101.6mm ID x 127.1mm OD x 11.13mm Thk

Replaces 8500058

2шт.

10

8500055

SHIM,112.5mm ID x 147mm OD x 1.5mm Thk

1шт.

11

8500054

SHIM,112.5mm ID x 147mm OD x 1mm Thk

1шт.

12

8500053

SHIM,112.5mm ID x 147mm OD x 0.5mm Thk

1шт.

13

8500056

CAP

2шт.

14

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

15

863-20070

HEX SOC SCREW,M20 x 70mm, 12.9

4шт.

8603201

BREATHER

One Used On Each Axle

2шт.
