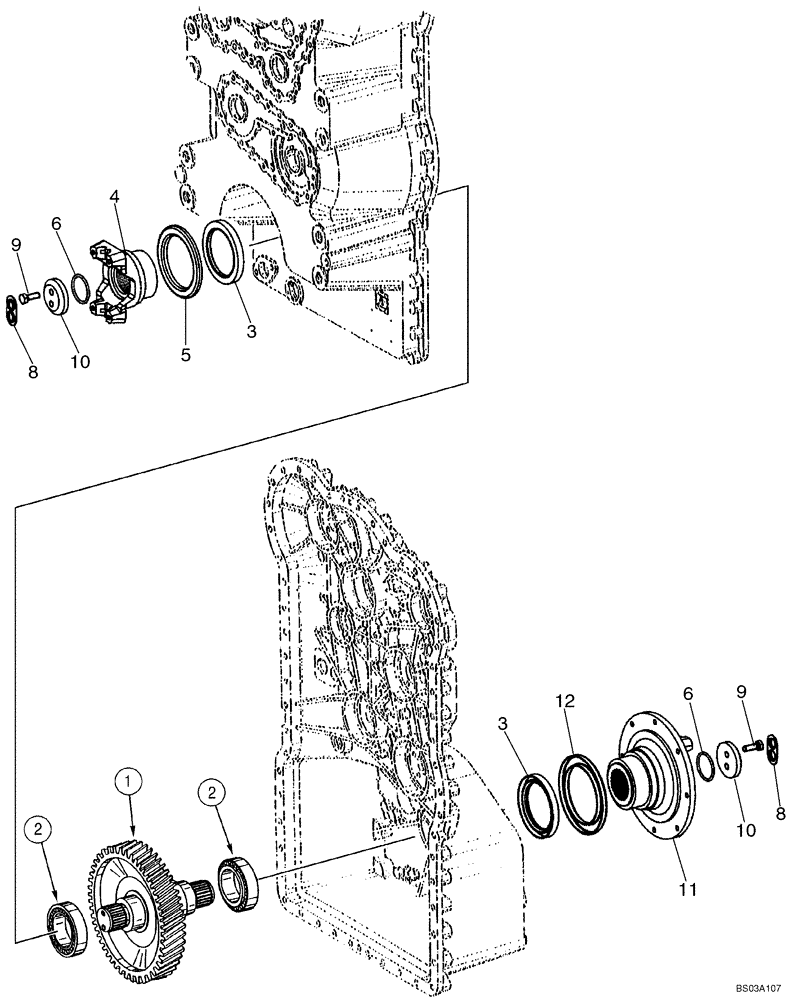

Запчасти Case 721D (06-14) - TRANSMISSION - SHAFT, OUTPUT (06) - POWER TRAIN

1

8603520

SHAFT

1шт.

2

8603504

ROLLER BEARING,66.67mm ID x 112.71mm OD x 30.16mm W

2шт.

3

8603211

SEAL,90mm ID x 120mm OD x 13mm Thk

2шт.

4

8604718

YOKE

Output; Rear

1шт.

5

8604719

SEAL

Seal

1шт.

6

8603275

O-RING,4mm Thk x 48mm ID

2шт.

7

8604719

SEAL

2шт.

8

8603212

WASHER

2шт.

9

8603521

SCREW,Hex, M10 x 30mm

Hex, M10 x 30

4шт.

10

8604717

WASHER

2шт.

11

8604720

FLANGE

Ouput; For Parking Brake Assembly; See Figure 07-01

1шт.

12

8604721

SEAL

Screen Sheet Seal

1шт.
