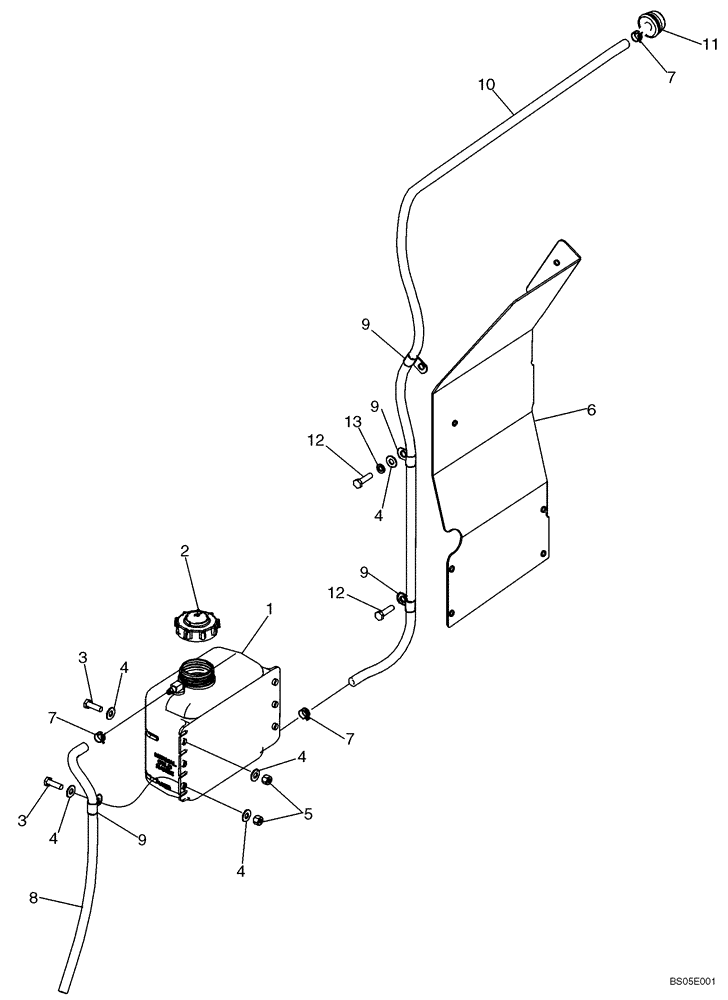

Запчасти Case 721D (02-04) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

A184395

RESERVOIR

1шт.

2

1547924C1

CAP

1шт.

3

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

12шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

6

8602470

PLATE

Fan; Left

1шт.

REF

INSTRUCTION

Guard Fan; Right; See Figure 02-02A

1шт.

7

A171099

HOSE CLAMP,13.2mm - 15.4mm

3шт.

8

87541330

HOSE,7.90 mm ID x 695.00 mm

Cut from 31-2855; Reservoir, Drain; Replaces 396120A1 495 mm (19-1/2")

1шт.

9

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

4шт.

10

8500318

HOSE

2260 mm (89 in); Cut from 31-2855; Coolant Recovery

1шт.

11

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2" ID

1шт.

12

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

13

892-11008

LOCK WASHER,8mm ID

4шт.
