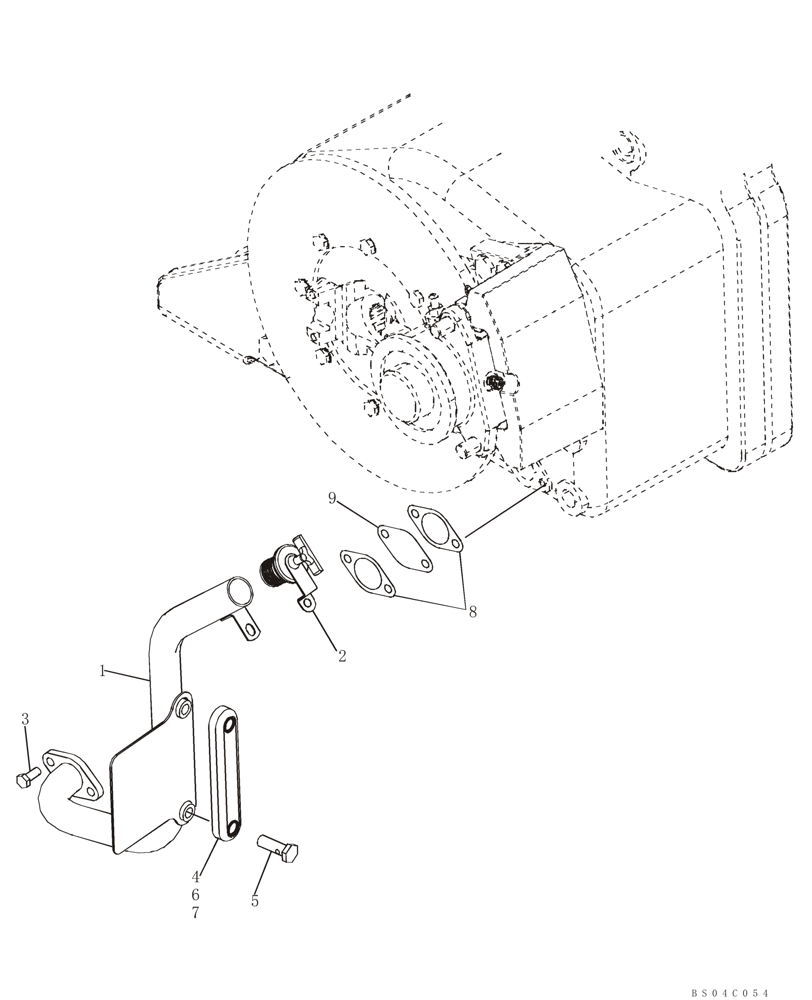

Запчасти Case 721D (06-03) - TRANSMISSION FILL TUBE - GAUGE, SIGHT (06) - POWER TRAIN

8500050

TRANSMISSION

See Figure(s) 06-04 - 06-21, 07-01

1шт.

87671889R

REMAN-TRANSMISSION

721D, (1/03-), Reman For New P/N 8500050

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

*

See Figure(s) 06-04 - 06-21, 07-01

1шт.

8605548

REMAN-TRANSMISSION

Remanufactured Transmission; 721D, Model Number 4WG190, Stock Number 4657 024 030

1шт.

8605547

CORE-TRANSMISSION

Return number

1шт.

1

8602216

TUBE,31.75 mm OD x 450, 175 mm L

Transmission Fill

1шт.

2

443565A1

CAP

1шт.

3

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

4

86988366

SIGHTGLASS

Incl. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Bolt, M12 x 1,75 x 35

2шт.

5

NSS

NOT SOLD SEPARAT

Bolt, M12 x 1,75 x 35

2шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

7

NSS

NOT SOLD SEPARAT

Nut, M12

2шт.

8

S300507

GASKET

2шт.

8

8603281

GASKET

Replaces S300507

2шт.

9

E135229

FILTER SCREEN

1шт.
