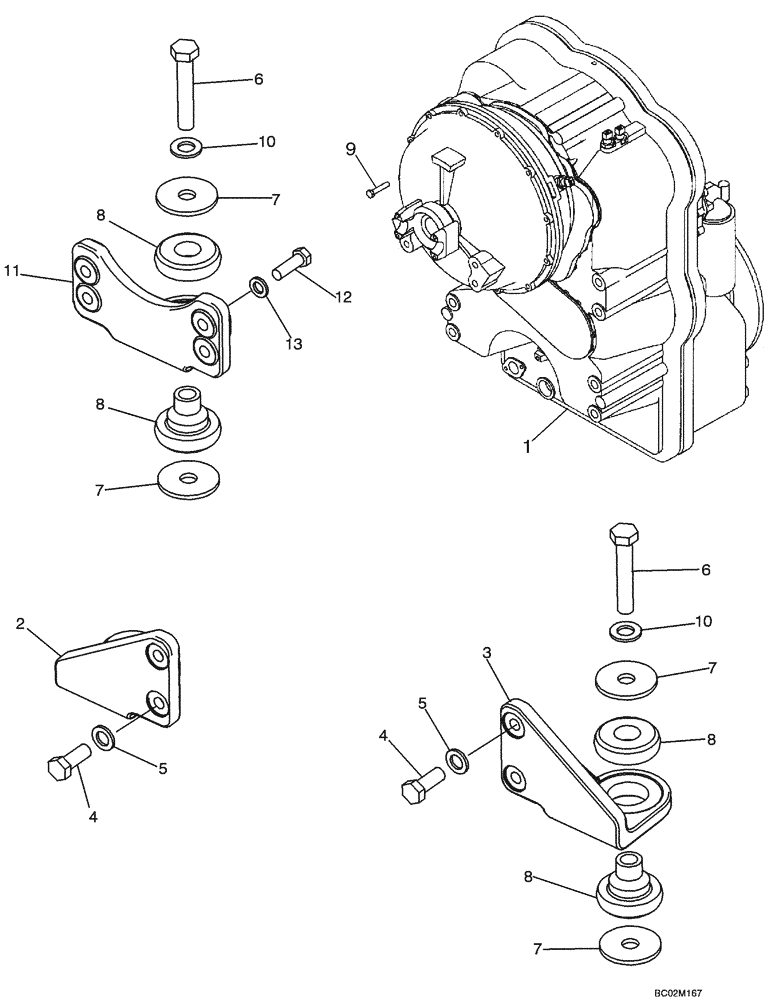

Запчасти Case 721D (06-02) - MOUNTING - TRANSMISSION (06) - POWER TRAIN

1

8500050

TRANSMISSION

See Figure(s) 06-04 - 06-21, 07-01

1шт.

87671889R

REMAN-TRANSMISSION

721D, (1/03-), Reman For New P/N 8500050

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

1

8605548

REMAN-TRANSMISSION

Remanufactured Transmission; 721D, Model Number 4WG190, Stock Number 4657 024 030

1шт.

1

8605547

CORE-TRANSMISSION

Return number

1шт.

2

8500093

BRACKET

LH; Replaces 8603026

1шт.

3

8500094

BRACKET

RH; Replaces 8603027

1шт.

4

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

4шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

6

827-22120

BOLT,Hex, M22 x 2.5 x 120mm, Cl 10.9

3шт.

7

379611A1

WASHER

Replaces 8604726

6шт.

8

361187A1

ISOLATOR

3шт.

9

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

10

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

3шт.

11

8500096

BRACKET

Top; Replaces 8603025

1шт.

12

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.
