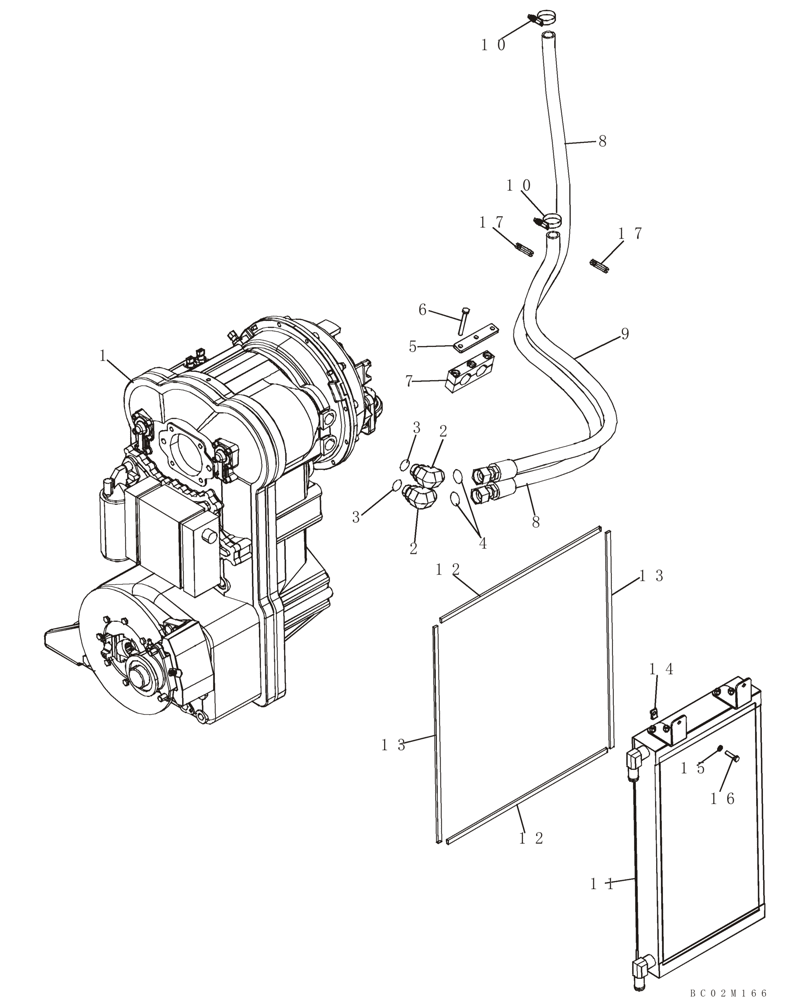

Запчасти Case 721D (06-01) - HYDRAULICS - TRANSMISSION (06) - POWER TRAIN

1

8500050

TRANSMISSION

ZF No 4656 054 025; See Figure 06-04 - 06-21, 07-01

1шт.

87671889R

REMAN-TRANSMISSION

721D, (1/03-), Reman For New P/N 8500050

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

1

8605548

REMAN-TRANSMISSION

Remanufactured Transmission; 721D, Model Number 4WG190, Stock Number 4657 024 030

1шт.

1

8605547

CORE-TRANSMISSION

Return number

1шт.

2

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1-7/16 fc x 1-5/16; Incl. 3, 4

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

5

8500583

PLATE

1шт.

6

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

3шт.

7

8500576

CLAMP

2шт.

8

8501186

HOSE,25.4mm ID x 2100mm L

2100 mm (82 11/16 in);, Serial Range: Transmission-Cooler

1шт.

9

8501185

HOSE,25.4mm ID x 1375mm L

1375 mm (54 1/8 in);, Serial Range: Cooler-Transmission

1шт.

10

353036A1

HOSE CLAMP,32mm - 54mm

2шт.

11

8501295

OIL COOLER

1шт.

12

8500134

OIL SEAL

565 mm (22-1/4 in); Cut from 198573C2 Bulk; Top - Bottom

2шт.

13

8500133

OIL SEAL

698 mm (27-1/2 in); Cut from 198573C2 Bulk; Side

2шт.

14

833-40408

NUT,M8, U

2шт.

15

892-11008

LOCK WASHER,8mm ID

2шт.

16

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

M8 x 25; 10.9

2шт.

17

248-1185

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

2шт.

18

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

Not Illustrated

1шт.

19

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Not Illustrated

1шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

Not Illustrated

1шт.
