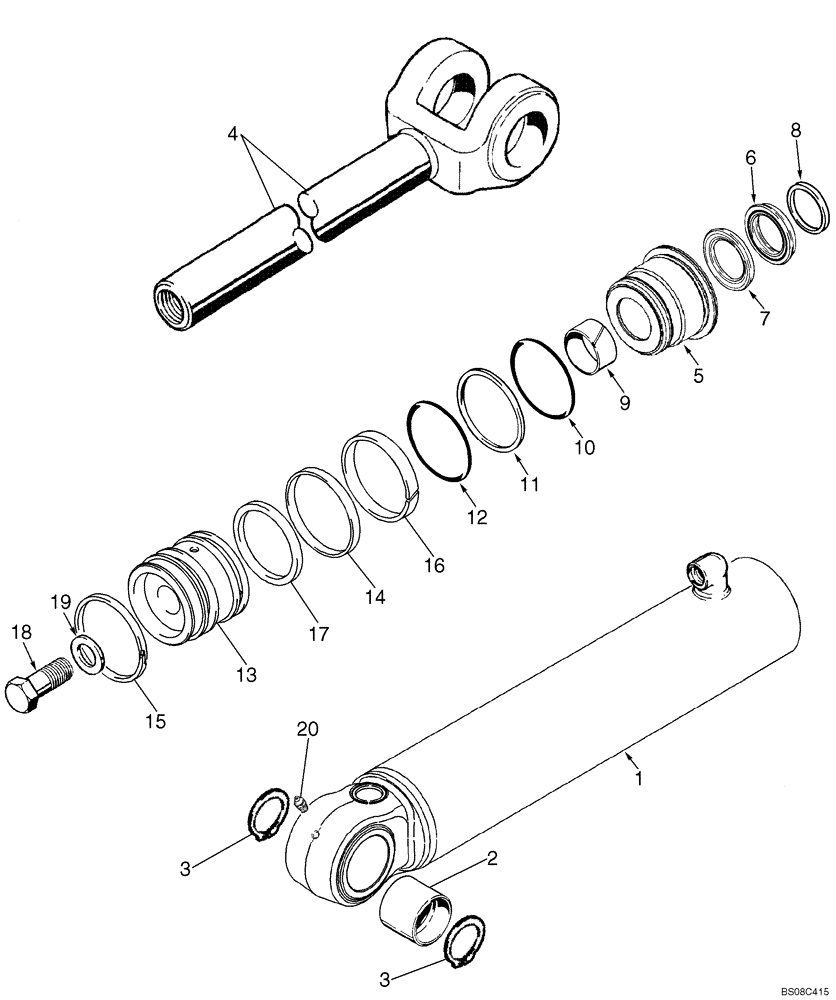

Запчасти Case 721D (05-09) - CYLINDER ASSY - STEERING - IF USED (05) - STEERING

8602346

STEERING CYLINDER

76 ID x 485 strk, Piston Flange 4.19 mm Thick; Incl. 1 - 20 and 8605261 Seal Kit

2шт.

87452362R

REMAN-HYD CYLINDER

721D CASE WHEEL LOADER (NORTH AMERICA), 76 ID x 485 strk, Piston Flange 4.19 mm Thick (1/03-), Reman for New PN 8602346

2шт.

87452362C

CORE-HYD CYLINDER

Return Number

2шт.

8605261

SEAL KIT

Steering Cylinder; Incl. Refs. 6 - 12, 14 - 16, Also Incl. Seal G102288 Which Is Not Used In This Application

1шт.

1

442702A1

TUBE

Incl. Refs. 2, 3

1шт.

2

442711A1

BUSHING,39.99mm ID x 62mm OD x 28mm W

1шт.

3

100-21244

SNAP RING,2.44", Int, #244

2шт.

4

442703A1

PISTON ROD

1шт.

442704A1

GLAND

Assembly; Incl. 5 - 12

1шт.

5

442713A1

GLAND

1шт.

1542875C1

SEAL KIT,44.4mm Rod

Rod and Buffer Seals; Incl Ref 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

8

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

10

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

1шт.

11

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

12

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

442705A1

PISTON

Assembly; Incl. Refs. 13 - 17

1шт.

13

442716A1

PISTON

Flange 4.19 mm Thick

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

Loader Ring

1шт.

15

364376A1

RING,Locking, 68.88mm ID x 76.1mm OD x 4.74mm Thk

Cast Iron

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

17

442717A1

SEAL

Piston

1шт.

18

86982439

SPECIAL BOLT,Hex, 14, 1 x 4"

Bolt and Washer; Incl. Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
